Crimping Intohousing And Dipping Tin Machine
Full-automatic Multi-wire Single-head Tin Dipping and Plastic Housing Threading Machine
WHX-058HS
Send Inquiry
Product Description

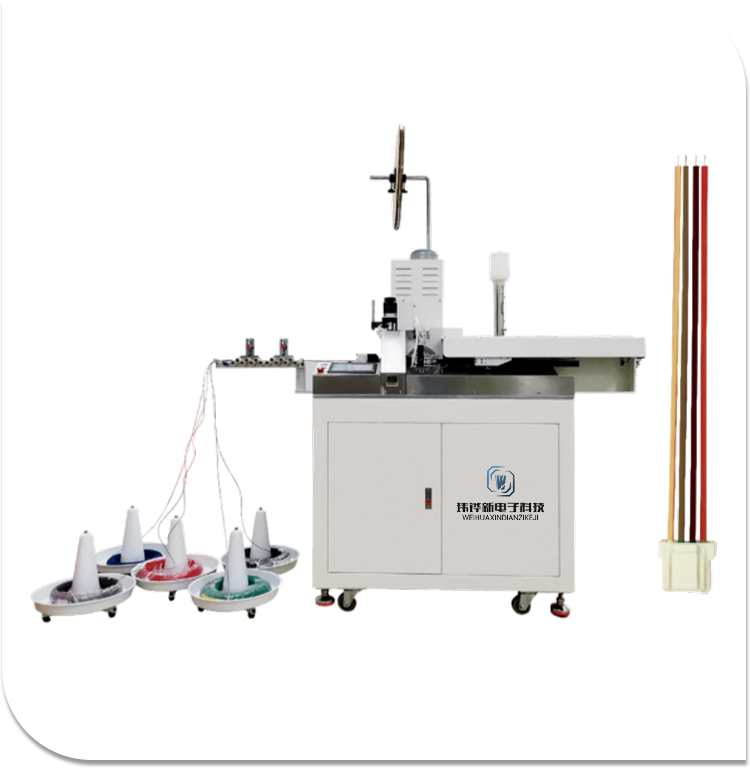

The crimping into housing and dipping tin machine is a fully automated all-process equipment designed to integrate wire cutting, wire stripping, tin dipping, terminal crimping, and automatic rubber housing insertion into a single seamless workflow. Ideal for single-end processing of multi-strand wires in wire harness manufacturing and electronic connector applications, this crimping into housing and dipping tin machine supports simultaneous multi-wire operation and features a spool feeding mechanism alongside an automatic rubber housing feeding system. By replacing manual operations, it significantly enhances processing efficiency and consistency.
Product Parameter
Application field：For multiple parallel wires, cut, strip the
insulation,crimp the terminals, and insert them into the plastic
housing simultaneously, and tin the other end
Cables Specification：0.3-2.5 m㎡ / AWG24＃ - AWG12＃
Cutting Length：75-1500mm
Production Rate：750 pcs /H
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：0.5mm+ Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L1330*W900*H1860 mm
insulation,crimp the terminals, and insert them into the plastic
housing simultaneously, and tin the other end
Cables Specification：0.3-2.5 m㎡ / AWG24＃ - AWG12＃
Cutting Length：75-1500mm
Production Rate：750 pcs /H
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：0.5mm+ Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L1330*W900*H1860 mm
Product Feature
Core Selling Points
1.Simultaneous Multi-Wire Operation: Processes multiple wire strands in parallel, addressing both efficiency and mass production demands.
2.Fully Automated Process: Executes the entire workflow—from wire cutting/stripping to tin dipping, terminal crimping, and rubber housing insertion—without manual intervention.
3.Intelligent Control: Includes a touchscreen interface for precise parameter settings, such as wire length, stripping length, and tin dipping depth.
4.Multi-Specification Compatibility: Adapts to various wire diameters and rubber housing models, ensuring flexibility for diverse production requirements.
Product Advantages
1.Efficiency: Handles multiple wires in a single batch, achieving processing speeds 5–8 times faster than manual operations.
2.Precision: Maintains a mechanical operation error of < 0.1mm, guaranteeing high consistency in terminal crimping and rubber housing insertion.
3.Cost-Effectiveness: Reduces labor dependency, lowering long-term labor and consumable costs.
4.Convenience: Equipped with casters and a storage cabinet for easy mobility and storage; the spool feeding rack supports multiple wire spool types.
Usage Instructions
1.Feeding Preparation: Mount the wire spool on the top feeding rack, load the rubber housing into the right-side feeding mechanism, and connect multiple wire strands to the left-side wire splitter.
2.Parameter Setting: Input process parameters (e.g., wire length, stripping length, tin dipping time) via the touchscreen.
3.Start Operation: Confirm smooth operation of all mechanisms, then press the start button. The crimping into housing and dipping tin machine will automatically complete the full process: wire cutting → wire stripping → tin dipping → terminal crimping → rubber housing insertion.
4.Finished Product Collection: Retrieve processed wire harnesses from the discharge table.
5.Maintenance Tips: Regularly clean residual solder from the tin dipping mechanism and inspect the wire splitter and rubber housing feeding track for smooth operation.
1.Simultaneous Multi-Wire Operation: Processes multiple wire strands in parallel, addressing both efficiency and mass production demands.
2.Fully Automated Process: Executes the entire workflow—from wire cutting/stripping to tin dipping, terminal crimping, and rubber housing insertion—without manual intervention.
3.Intelligent Control: Includes a touchscreen interface for precise parameter settings, such as wire length, stripping length, and tin dipping depth.
4.Multi-Specification Compatibility: Adapts to various wire diameters and rubber housing models, ensuring flexibility for diverse production requirements.
Product Advantages
1.Efficiency: Handles multiple wires in a single batch, achieving processing speeds 5–8 times faster than manual operations.
2.Precision: Maintains a mechanical operation error of < 0.1mm, guaranteeing high consistency in terminal crimping and rubber housing insertion.
3.Cost-Effectiveness: Reduces labor dependency, lowering long-term labor and consumable costs.
4.Convenience: Equipped with casters and a storage cabinet for easy mobility and storage; the spool feeding rack supports multiple wire spool types.
Usage Instructions
1.Feeding Preparation: Mount the wire spool on the top feeding rack, load the rubber housing into the right-side feeding mechanism, and connect multiple wire strands to the left-side wire splitter.
2.Parameter Setting: Input process parameters (e.g., wire length, stripping length, tin dipping time) via the touchscreen.
3.Start Operation: Confirm smooth operation of all mechanisms, then press the start button. The crimping into housing and dipping tin machine will automatically complete the full process: wire cutting → wire stripping → tin dipping → terminal crimping → rubber housing insertion.
4.Finished Product Collection: Retrieve processed wire harnesses from the discharge table.
5.Maintenance Tips: Regularly clean residual solder from the tin dipping mechanism and inspect the wire splitter and rubber housing feeding track for smooth operation.
