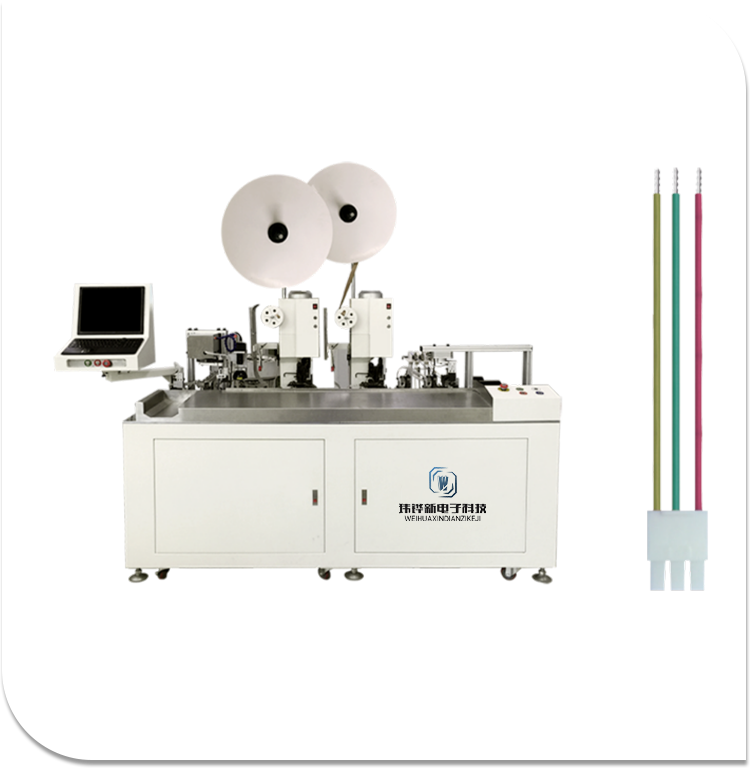

Automate Into Housing And Twist Wire Dipping Tin Machine
Full-Automatic Single-Wire Plastic Housing Threading, Wire Twisting And Tin Dipping Machine
WHX-86S
Send Inquiry
Product Description
The automate into housing and twist wire dipping tin machine is a fully automatic wire harness processing system that integrates three core functions: wire twisting, precise tin dipping, and housing insertion. Compatible with a wide range of wire and connector specifications, this automate into housing and twist wire dipping tin machine completes the entire process—from wire end twisting and uniform tin dipping to automatic connector insertion—with a single click, making it ideal for mass production in industries such as consumer electronics, communication equipment, and security devices.
Product Parameter
Production Rate：30 PCS/M
Application field：Crimping ；Pressure detection ；
Scan the code to identify
Cables Specification：0.3-2.5 m㎡ / AWG24＃ - AWG12＃
Cutting Length：75-9999mm
Power supply：AC220V 50/60Hz 20A
Crimping ability：2T
Dimensions：L1500*W800*H1860 mm
Application field：Crimping ；Pressure detection ；
Scan the code to identify
Cables Specification：0.3-2.5 m㎡ / AWG24＃ - AWG12＃
Cutting Length：75-9999mm
Power supply：AC220V 50/60Hz 20A
Crimping ability：2T
Dimensions：L1500*W800*H1860 mm
Product Feature
Core Selling Points
3-in-1 Full Automation: Seamlessly executes wire twisting → tin dipping → housing insertion in a continuous workflow, eliminating manual transfer between stages.
Precise Tin Dipping Control: Features a built-in temperature control and tin immersion depth adjustment module, ensuring uniformity errors < ±0.3mm for consistent soldering quality.
Intelligent Connector Compatibility: Supports multi-pin and multi-spec connectors with automatic identification and accurate positioning to meet diverse production needs.
Simplified Visual Operation: Enables one-click parameter setting via touchscreen, with real-time display of production progress and abnormal status alerts.
Product Advantages
Efficiency Upgrade: Replaces 2–3 manual workers, achieving a daily production capacity of over 8,000 wire harnesses.
Stable Quality: Maintains consistent wire twisting tightness, eliminates cold solder joints or missing solder in tin dipping, and ensures connector insertion yield > 99.5%.
Cost Optimization: Reduces waste of tin and wire materials while lowering labor and quality rework costs through precision automation.
Rapid Model Changeover: Requires only 5 minutes to switch between connector/wire specifications, making it suitable for small-batch and multi-variety production.
Operating Instructions
Material Preparation: Load wire spools, tin wire, and corresponding connectors into their designated positions on the automate into housing and twist wire dipping tin machine.
Parameter Setting: Input wire twisting length, tin dipping temperature/depth, and connector pin information via the touchscreen interface.
Test Run Verification: Activate the "single-step trial production" mode to inspect wire twisting, tin dipping, and housing insertion effects on the first product.
Batch Processing: After confirming parameters are correct, switch to "automatic mode" for continuous, hands-free production.
Daily Maintenance: Clean tin dross and connector conveying rails daily; inspect tin dipping needles weekly for wear and tear.
3-in-1 Full Automation: Seamlessly executes wire twisting → tin dipping → housing insertion in a continuous workflow, eliminating manual transfer between stages.
Precise Tin Dipping Control: Features a built-in temperature control and tin immersion depth adjustment module, ensuring uniformity errors < ±0.3mm for consistent soldering quality.
Intelligent Connector Compatibility: Supports multi-pin and multi-spec connectors with automatic identification and accurate positioning to meet diverse production needs.
Simplified Visual Operation: Enables one-click parameter setting via touchscreen, with real-time display of production progress and abnormal status alerts.
Product Advantages
Efficiency Upgrade: Replaces 2–3 manual workers, achieving a daily production capacity of over 8,000 wire harnesses.
Stable Quality: Maintains consistent wire twisting tightness, eliminates cold solder joints or missing solder in tin dipping, and ensures connector insertion yield > 99.5%.
Cost Optimization: Reduces waste of tin and wire materials while lowering labor and quality rework costs through precision automation.
Rapid Model Changeover: Requires only 5 minutes to switch between connector/wire specifications, making it suitable for small-batch and multi-variety production.
Operating Instructions
Material Preparation: Load wire spools, tin wire, and corresponding connectors into their designated positions on the automate into housing and twist wire dipping tin machine.
Parameter Setting: Input wire twisting length, tin dipping temperature/depth, and connector pin information via the touchscreen interface.
Test Run Verification: Activate the "single-step trial production" mode to inspect wire twisting, tin dipping, and housing insertion effects on the first product.
Batch Processing: After confirming parameters are correct, switch to "automatic mode" for continuous, hands-free production.
Daily Maintenance: Clean tin dross and connector conveying rails daily; inspect tin dipping needles weekly for wear and tear.
