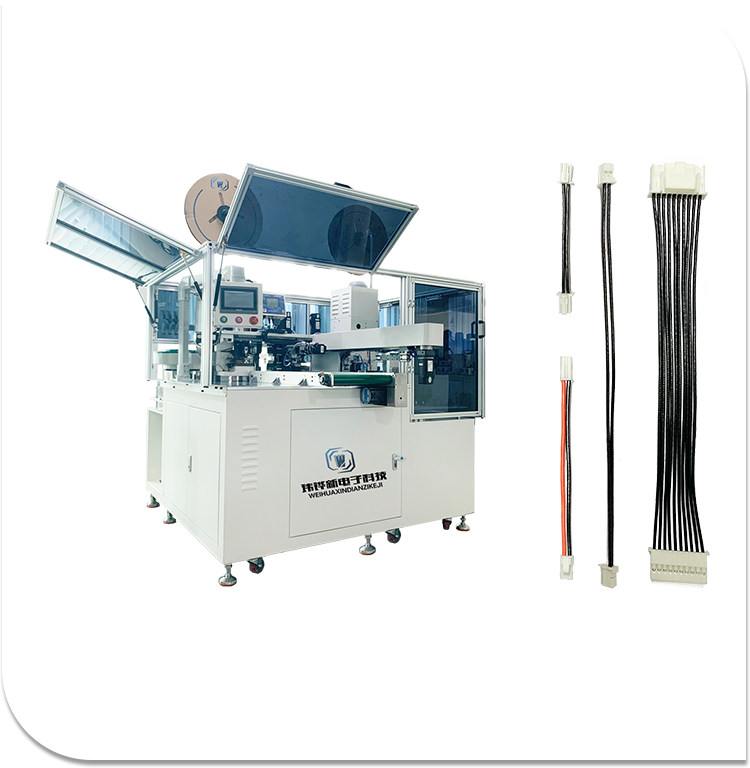

Automate Strand Cable Crimping Connector And Into Housing Machine
Send Inquiry
Product Description
This Aautomate strand cable crimping connector and into housing machine is a state-of-the-art fully automatic wire harness processing machine that seamlessly integrates multi-wire cutting, stripping, double-end crimping, and automatic housing insertion. It is engineered to synchronously complete the entire process of double-end terminal crimping and housing assembly for multiple wires in one go, making it ideal for mass production of multi-core wire harnesses in industries such as home appliances, automotive, and industrial control. The Aautomate strand cable crimping connector and into housing machine offers exceptional compatibility with different wire gauges, terminal types, and housing specifications, ensuring versatility across diverse production requirements.
Product Parameter
Application field：Strand Cable Cutting ,Stripping ,Criming Connector And Into Housing
Cables Specification：AWG24#-AWG12#
Cutting Length：75-1500mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：0.5mm+ Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L1330*W900*H1860 mm
Cables Specification：AWG24#-AWG12#
Cutting Length：75-1500mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：0.5mm+ Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L1330*W900*H1860 mm
Product Feature
Core Selling Points
1.Multi-Wire Synchronous Processing: This Aautomate strand cable crimping connector and into housing machine supports the simultaneous handling of multiple wires, completing double-end terminal crimping and housing insertion in a single step. This boosts production efficiency several times over compared to traditional single-wire processing methods, significantly accelerating production cycles.
2.Fully Unmanned Workflow: The Aautomate strand cable crimping connector and into housing machine encompasses all processes—wire cutting, stripping, twisting, crimping, and housing insertion—without the need for manual segmented operations. This automation minimizes human intervention, reduces labor costs, and enhances production consistency.
3.Intelligent Compatibility: With the ability to work with various wire gauges, terminal types, and housing specifications, this Aautomate strand cable crimping connector and into housing machine offers unparalleled flexibility. Switching between product models is quick and easy, enabling seamless adaptation to changing production demands.
4.Visual Operation: The intuitive touchscreen interface integrates parameter setting, production counting, and fault alarm functions, making operation straightforward and user-friendly. Operators can monitor production progress at a glance and respond promptly to any issues that arise.
Product Advantages
1.Doubled Efficiency: By replacing 4-6 manual workers, this machine dramatically increases production capacity, with daily multi-wire output reaching tens of thousands of wire harness sets. This surge in efficiency allows manufacturers to meet high-volume demands with ease.
2.Reliable Precision: The machine ensures a 100% compliance rate for terminal crimping pull force, with housing insertion positioning error kept below ±0.3mm. This precision guarantees the quality and reliability of every wire harness produced, reducing the risk of defects and returns.
3.Cost Optimization: Through efficient material utilization, the machine reduces waste of wires, terminals, and housings. Additionally, it lowers labor management and training costs, contributing to overall cost savings and improved profitability.
4.Flexible & Efficient: With a product specification changeover time of less than 8 minutes, this machine adapts swiftly to small-batch, multi-variety production needs. This flexibility enables manufacturers to respond quickly to market changes and customer demands, enhancing competitiveness.
Operating Instructions
1.Material Loading: Load wire spools, terminal rolls, and housing trays into the corresponding equipment racks, ensuring proper alignment and tension.
2.Parameter Configuration: Via the touchscreen interface, input wire length, stripping length, crimping parameters, housing model, and other relevant settings. The machine will automatically adjust to these parameters, preparing for production.
3.Test Run Verification: Initiate the "trial production" mode to produce the first wire harness. Inspect the crimping strength and housing assembly effect to ensure they meet quality standards before proceeding to batch production.
4.Batch Operation: After confirming the first piece is qualified, switch to "auto mode" for continuous processing. The Aautomate strand cable crimping connector and into housing machine will automatically feed wires, crimp terminals, insert housings, and discharge finished wire harnesses for collection.
5.Daily Maintenance: After daily production, clean terminal waste and conveyor tracks to prevent buildup that could affect machine performance. Lubricate moving parts weekly to maintain smooth operation and prolong machine lifespan.
1.Multi-Wire Synchronous Processing: This Aautomate strand cable crimping connector and into housing machine supports the simultaneous handling of multiple wires, completing double-end terminal crimping and housing insertion in a single step. This boosts production efficiency several times over compared to traditional single-wire processing methods, significantly accelerating production cycles.
2.Fully Unmanned Workflow: The Aautomate strand cable crimping connector and into housing machine encompasses all processes—wire cutting, stripping, twisting, crimping, and housing insertion—without the need for manual segmented operations. This automation minimizes human intervention, reduces labor costs, and enhances production consistency.
3.Intelligent Compatibility: With the ability to work with various wire gauges, terminal types, and housing specifications, this Aautomate strand cable crimping connector and into housing machine offers unparalleled flexibility. Switching between product models is quick and easy, enabling seamless adaptation to changing production demands.
4.Visual Operation: The intuitive touchscreen interface integrates parameter setting, production counting, and fault alarm functions, making operation straightforward and user-friendly. Operators can monitor production progress at a glance and respond promptly to any issues that arise.
Product Advantages
1.Doubled Efficiency: By replacing 4-6 manual workers, this machine dramatically increases production capacity, with daily multi-wire output reaching tens of thousands of wire harness sets. This surge in efficiency allows manufacturers to meet high-volume demands with ease.
2.Reliable Precision: The machine ensures a 100% compliance rate for terminal crimping pull force, with housing insertion positioning error kept below ±0.3mm. This precision guarantees the quality and reliability of every wire harness produced, reducing the risk of defects and returns.
3.Cost Optimization: Through efficient material utilization, the machine reduces waste of wires, terminals, and housings. Additionally, it lowers labor management and training costs, contributing to overall cost savings and improved profitability.
4.Flexible & Efficient: With a product specification changeover time of less than 8 minutes, this machine adapts swiftly to small-batch, multi-variety production needs. This flexibility enables manufacturers to respond quickly to market changes and customer demands, enhancing competitiveness.
Operating Instructions
1.Material Loading: Load wire spools, terminal rolls, and housing trays into the corresponding equipment racks, ensuring proper alignment and tension.
2.Parameter Configuration: Via the touchscreen interface, input wire length, stripping length, crimping parameters, housing model, and other relevant settings. The machine will automatically adjust to these parameters, preparing for production.
3.Test Run Verification: Initiate the "trial production" mode to produce the first wire harness. Inspect the crimping strength and housing assembly effect to ensure they meet quality standards before proceeding to batch production.
4.Batch Operation: After confirming the first piece is qualified, switch to "auto mode" for continuous processing. The Aautomate strand cable crimping connector and into housing machine will automatically feed wires, crimp terminals, insert housings, and discharge finished wire harnesses for collection.
5.Daily Maintenance: After daily production, clean terminal waste and conveyor tracks to prevent buildup that could affect machine performance. Lubricate moving parts weekly to maintain smooth operation and prolong machine lifespan.
