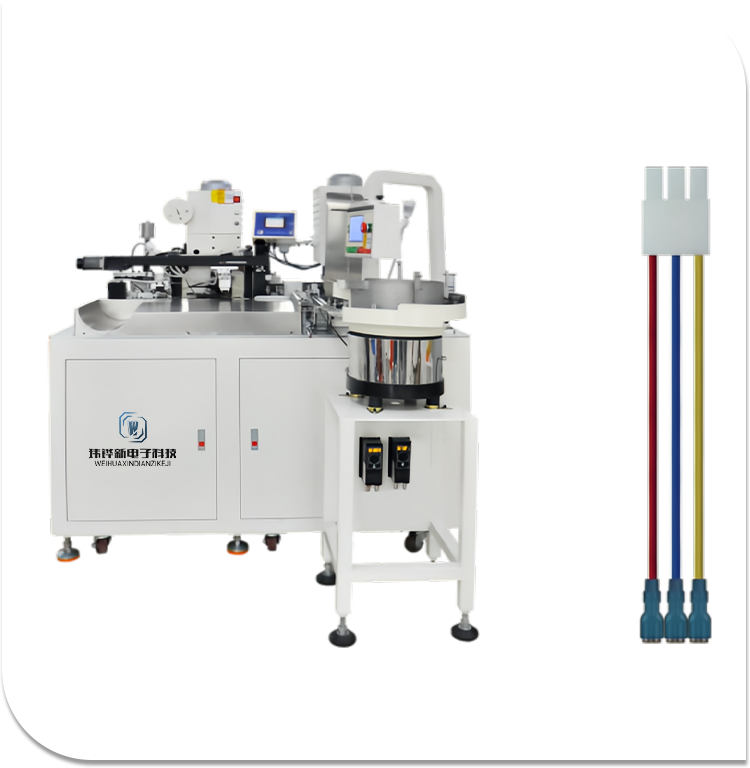

Automate Singe Cable Into Jacket And Into Housing Machine
Full-Automatic Single-Wire Single-Head Plastic Housing And Sheath Threading Machine
WHX-086C
Send Inquiry
Product Description
The automate singe cable into jacket and into housing machine is a fully automatic wire harness processing system that integrates advanced functions such as wire organizing, connector housing positioning, and sheath insertion. Designed for compatibility with a wide range of wire specifications, connector housings, and sheaths, this automate singe cable into jacket and into housing machine completes the precise single-end connector housing and sheath insertion process with a single click, making it ideal for mass wire harness assembly in industries such as home appliances, communications, and automotive electronics.
Product Parameter
Production Rate：30 PCS/M
Application field：It is used for wires in two to eight colors,
automatically cutting, stripping the insulation, crimping the
terminals, threading on the protective sheaths, and inserting them
into the plastic housings.
Cables Specification：0.3-2.5 m㎡ / AWG24＃ - AWG12＃
Cutting Length：75-9999mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：The length is within 500 millimeters.
0.5mm+ Cutting Length * 0.2%And The length is within
1000 millimeters.1.0mm+ Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L1500*W800*H1860 mm
Application field：It is used for wires in two to eight colors,
automatically cutting, stripping the insulation, crimping the
terminals, threading on the protective sheaths, and inserting them
into the plastic housings.
Cables Specification：0.3-2.5 m㎡ / AWG24＃ - AWG12＃
Cutting Length：75-9999mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：The length is within 500 millimeters.
0.5mm+ Cutting Length * 0.2%And The length is within
1000 millimeters.1.0mm+ Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L1500*W800*H1860 mm
Product Feature
Key Selling Points
1.Full-Process Automation: Seamlessly executes wire feeding → connector housing positioning → sheath insertion in one step, eliminating the need for manual assembly.
2.High-Precision Positioning: Ensures insertion alignment errors between the connector housing and sheath are < ±0.3mm for flawless assembly.
3.Intelligent Compatibility: Supports rapid matching of multiple wire gauges, connector housing models, and sheath sizes to meet diverse production requirements.
4.Visual Operation: Features a touchscreen interface for intuitive parameter setting, real-time production progress monitoring, and early fault warnings.
Product Advantages
1.Efficiency Upgrade: Replaces 2–3 manual workers, capable of completing tens of thousands of wire harness connector housing and sheath insertions per day.
2.Yield Assurance: Eliminates misassembly and missing assembly issues caused by manual operations, achieving a finished product qualification rate > 99.9%.
3.Cost Optimization: Reduces material waste of connector housings and sheaths while lowering labor management costs through automation.
4.Flexible Model Changeover: Enables quick switches between different product specifications in < 8 minutes, making it suitable for small-batch, multi-variety production.
Operating Instructions
1.Material Preparation: Load the wire spool, connector housing hopper, and sheath hopper into their designated positions on the automate singe cable into jacket and into housing machine.
2.Parameter Setting: Enter parameters such as wire specification and sheath size via the touchscreen interface.
3.Commissioning & Test Run: Activate the "test production" mode to verify connector housing insertion depth and sheath fit on the first product.
4.Batch Operation: After confirming parameters are correct, switch to "auto mode" for continuous automatic insertion processing.
5.Daily Maintenance: Clean residual materials from the hoppers after daily production, and regularly maintain the conveying rails and positioning fixtures to ensure optimal performance.
1.Full-Process Automation: Seamlessly executes wire feeding → connector housing positioning → sheath insertion in one step, eliminating the need for manual assembly.
2.High-Precision Positioning: Ensures insertion alignment errors between the connector housing and sheath are < ±0.3mm for flawless assembly.
3.Intelligent Compatibility: Supports rapid matching of multiple wire gauges, connector housing models, and sheath sizes to meet diverse production requirements.
4.Visual Operation: Features a touchscreen interface for intuitive parameter setting, real-time production progress monitoring, and early fault warnings.
Product Advantages
1.Efficiency Upgrade: Replaces 2–3 manual workers, capable of completing tens of thousands of wire harness connector housing and sheath insertions per day.
2.Yield Assurance: Eliminates misassembly and missing assembly issues caused by manual operations, achieving a finished product qualification rate > 99.9%.
3.Cost Optimization: Reduces material waste of connector housings and sheaths while lowering labor management costs through automation.
4.Flexible Model Changeover: Enables quick switches between different product specifications in < 8 minutes, making it suitable for small-batch, multi-variety production.
Operating Instructions
1.Material Preparation: Load the wire spool, connector housing hopper, and sheath hopper into their designated positions on the automate singe cable into jacket and into housing machine.
2.Parameter Setting: Enter parameters such as wire specification and sheath size via the touchscreen interface.
3.Commissioning & Test Run: Activate the "test production" mode to verify connector housing insertion depth and sheath fit on the first product.
4.Batch Operation: After confirming parameters are correct, switch to "auto mode" for continuous automatic insertion processing.
5.Daily Maintenance: Clean residual materials from the hoppers after daily production, and regularly maintain the conveying rails and positioning fixtures to ensure optimal performance.
