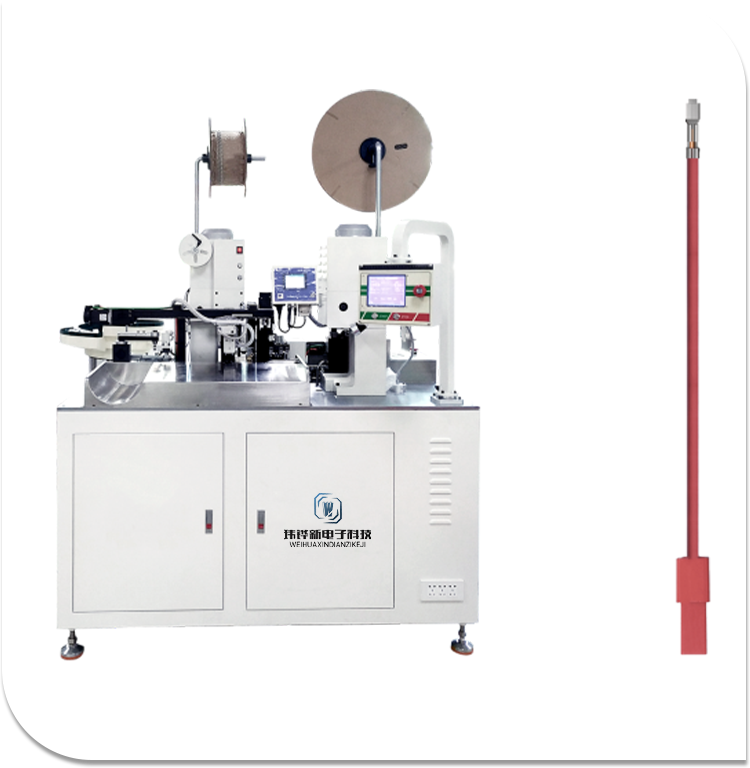

Automate Crimping Terminal At both End And Into Housing Machine
Full-automatic Single-wire Double-head Terminal Crimping and Single Plastic Housing Threading Machine
WHX-086
Send Inquiry
Product Description
The automate crimping terminal at both end and into housing machine is a fully automatic solution designed for single-wire harness processing, integrating four core functions: wire cutting, wire twisting, double-terminal crimping, and precise single-housing insertion. Compatible with diverse wire specifications, terminals, and housings, this automate crimping terminal at both end and into housing machine completes the entire process—from double-end terminal crimping to housing insertion—in a single streamlined operation. It is ideally suited for mass production in industries such as consumer electronics, smart home appliances, and communication equipment.
Product Parameter
Production Rate：30 PCS/M
Application field：It is used for wires in two to eight colors.cutting,
stripping the insulation, crimping the terminals and into housing
Cables Specification：0.3-2.5 m㎡ / AWG24＃ - AWG12＃
Cutting Length：75-9999mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：The length is within 500 millimeters.
0.5mm+ Cutting Length * 0.2%And The length is within 1000
millimeters.1.0mm+ Cutting Length * 0.2%
Crimping ability：2T
Application field：It is used for wires in two to eight colors.cutting,
stripping the insulation, crimping the terminals and into housing
Cables Specification：0.3-2.5 m㎡ / AWG24＃ - AWG12＃
Cutting Length：75-9999mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：The length is within 500 millimeters.
0.5mm+ Cutting Length * 0.2%And The length is within 1000
millimeters.1.0mm+ Cutting Length * 0.2%
Crimping ability：2T
Product Feature
Core Selling Points
1.Full-Process Automation for Single-Wire: Seamlessly executes wire cutting → wire twisting → double-terminal crimping → single-housing insertion in one step, eliminating manual segmented operations.
2.Dual-End Synchronous Crimping: Simultaneously crimps terminals at both wire ends while ensuring precise single-housing insertion, achieving a highly efficient processing rhythm.
3.Intelligent Housing Compatibility: Supports a wide range of housing models and terminal specifications, with rapid recognition of housing positioning holes for flawless alignment.
4.Visualized Intelligent Operation: Features a touchscreen interface integrating parameter setting, production counting, and housing shortage alarms for intuitive, user-friendly control.
Product Advantages
1.Efficiency Enhancement: Replaces 2–3 manual workers, delivering a daily single-wire production capacity of tens of thousands of pieces with a housing insertion yield rate exceeding 99.8%.
2.Precision Guarantee: Maintains stable terminal crimping pull force and housing insertion positioning errors of < ±0.3mm for consistent, high-quality results.
3.Cost Optimization: Minimizes wire, terminal, and housing wastage while reducing misassembly costs associated with manual operations.
4.Flexible Model Changeover: Enables switching between wire gauges, terminals, or housing specifications in under 8 minutes for rapid adaptability.
Operation Instructions
1.Material Preparation: Load wire rolls and terminal rolls into their designated racks, and place housings into the equipment’s feeding slot.
2.Parameter Setting: Input wire length, twisting parameters, terminal crimping specifications, and housing models via the touchscreen.
3.Commissioning & Trial Run: Activate "Trial Production" mode to verify terminal crimping quality and housing insertion alignment on the first piece.
4.Mass Production: After confirming parameter accuracy, switch to "Automatic Mode" for continuous, fully automated processing by the automate crimping terminal at both end and into housing machine.
5.Maintenance & Cleaning: Clear terminal waste and housing conveying tracks daily, and lubricate moving parts weekly to ensure optimal performance.
1.Full-Process Automation for Single-Wire: Seamlessly executes wire cutting → wire twisting → double-terminal crimping → single-housing insertion in one step, eliminating manual segmented operations.
2.Dual-End Synchronous Crimping: Simultaneously crimps terminals at both wire ends while ensuring precise single-housing insertion, achieving a highly efficient processing rhythm.
3.Intelligent Housing Compatibility: Supports a wide range of housing models and terminal specifications, with rapid recognition of housing positioning holes for flawless alignment.
4.Visualized Intelligent Operation: Features a touchscreen interface integrating parameter setting, production counting, and housing shortage alarms for intuitive, user-friendly control.
Product Advantages
1.Efficiency Enhancement: Replaces 2–3 manual workers, delivering a daily single-wire production capacity of tens of thousands of pieces with a housing insertion yield rate exceeding 99.8%.
2.Precision Guarantee: Maintains stable terminal crimping pull force and housing insertion positioning errors of < ±0.3mm for consistent, high-quality results.
3.Cost Optimization: Minimizes wire, terminal, and housing wastage while reducing misassembly costs associated with manual operations.
4.Flexible Model Changeover: Enables switching between wire gauges, terminals, or housing specifications in under 8 minutes for rapid adaptability.
Operation Instructions
1.Material Preparation: Load wire rolls and terminal rolls into their designated racks, and place housings into the equipment’s feeding slot.
2.Parameter Setting: Input wire length, twisting parameters, terminal crimping specifications, and housing models via the touchscreen.
3.Commissioning & Trial Run: Activate "Trial Production" mode to verify terminal crimping quality and housing insertion alignment on the first piece.
4.Mass Production: After confirming parameter accuracy, switch to "Automatic Mode" for continuous, fully automated processing by the automate crimping terminal at both end and into housing machine.
5.Maintenance & Cleaning: Clear terminal waste and housing conveying tracks daily, and lubricate moving parts weekly to ensure optimal performance.
