Automate Crimp Terminals Machine (Two Terminals)
Full-automatic Dual-wire Double-head Combined Crimping and Terminal Forming Machine
WHX-038
Send Inquiry
Product Description

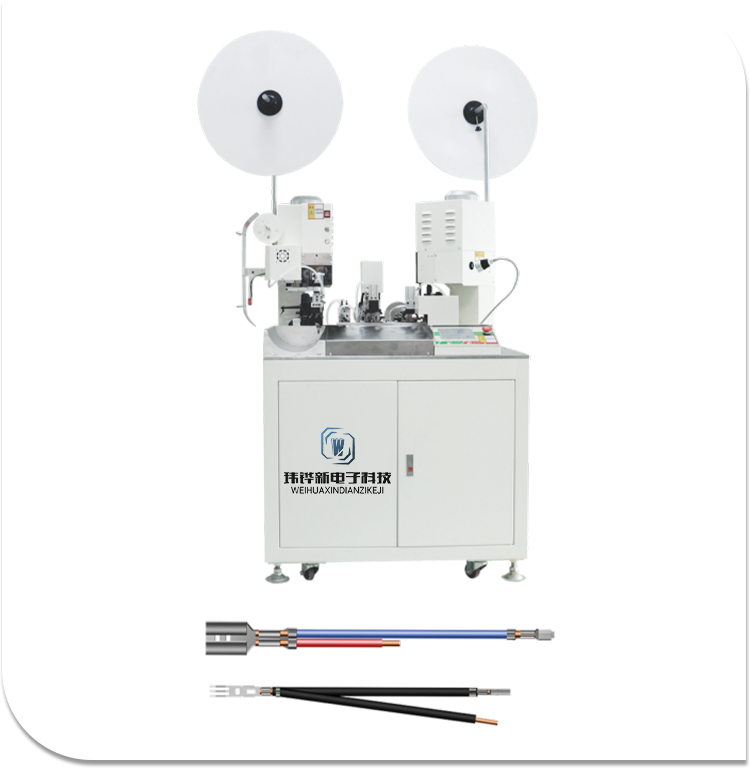

The automate crimp terminals machine (two terminals) is a fully automatic dual-wire crimping system designed to simultaneously cut, strip, and crimp terminals at both ends of two wires in a single operation. Ideal for high-volume wire harness production, this automate crimp terminals machine (two terminals) enhances efficiency and consistency while reducing manual labor.
Product Parameter
Production Rate：3000PCS / H
Application field：Please refer to the product
schematic diagram
Cable size range：AWG24#-AWG12#
Cutting Length：65-9999mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：0.5mm + Cutting Length * 0.5%
Crimping ability：2T
Dimensions：L1000*W750*H1860 mm
Application field：Please refer to the product
schematic diagram
Cable size range：AWG24#-AWG12#
Cutting Length：65-9999mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：0.5mm + Cutting Length * 0.5%
Crimping ability：2T
Dimensions：L1000*W750*H1860 mm
Product Feature
Core Selling Points
1.Dual-Wire Synchronous Processing: Crimps terminals on two wires in parallel, eliminating the repetitive steps of single-wire processing and doubling output.
2.Fully Automated Process: Integrates wire feeding, cutting, stripping, and crimping functions, minimizing manual intervention across all stages.
3.Both-End Terminal Crimping: Synchronously crimps terminals at both ends of each wire, meeting stringent requirements for double-ended wire harnesses.
4.Strong Compatibility: Supports seamless switching between wires and terminals of varying specifications, adapting to diverse wire harness types.
Product Advantages
1.Efficiency Improvement: Dual-wire parallel processing and full automation boost productivity by at least 50% compared to traditional methods.
2.Stable Precision: A robust mechanical structure paired with intelligent controls ensures precise terminal crimping force and wire cutting length, reducing defects.
3.Easy Operation: The touchscreen interface simplifies parameter setup, enabling novice operators to master the automate crimp terminals machine (two terminals) quickly.
4.Cost Saving: Lowers labor costs and material waste through accurate cutting and crimping, optimizing resource utilization.
Operating Instructions
1.Loading: Mount wire reels and terminal reels on their designated racks.
2.Parameter Setting: Input wire length, stripping length, and crimping force via the touchscreen.
3.Commissioning: Run the equipment in no-load mode to verify smooth wire feeding, cutting, and crimping actions.
4.Mass Production: Switch to automatic mode for continuous dual-wire cutting, stripping, and both-end terminal crimping.
5.Maintenance: Regularly clean debris, inspect crimping die wear, and ensure stable operation of the automate crimp terminals machine (two terminals).
1.Dual-Wire Synchronous Processing: Crimps terminals on two wires in parallel, eliminating the repetitive steps of single-wire processing and doubling output.
2.Fully Automated Process: Integrates wire feeding, cutting, stripping, and crimping functions, minimizing manual intervention across all stages.
3.Both-End Terminal Crimping: Synchronously crimps terminals at both ends of each wire, meeting stringent requirements for double-ended wire harnesses.
4.Strong Compatibility: Supports seamless switching between wires and terminals of varying specifications, adapting to diverse wire harness types.
Product Advantages
1.Efficiency Improvement: Dual-wire parallel processing and full automation boost productivity by at least 50% compared to traditional methods.
2.Stable Precision: A robust mechanical structure paired with intelligent controls ensures precise terminal crimping force and wire cutting length, reducing defects.
3.Easy Operation: The touchscreen interface simplifies parameter setup, enabling novice operators to master the automate crimp terminals machine (two terminals) quickly.
4.Cost Saving: Lowers labor costs and material waste through accurate cutting and crimping, optimizing resource utilization.
Operating Instructions
1.Loading: Mount wire reels and terminal reels on their designated racks.
2.Parameter Setting: Input wire length, stripping length, and crimping force via the touchscreen.
3.Commissioning: Run the equipment in no-load mode to verify smooth wire feeding, cutting, and crimping actions.
4.Mass Production: Switch to automatic mode for continuous dual-wire cutting, stripping, and both-end terminal crimping.
5.Maintenance: Regularly clean debris, inspect crimping die wear, and ensure stable operation of the automate crimp terminals machine (two terminals).
