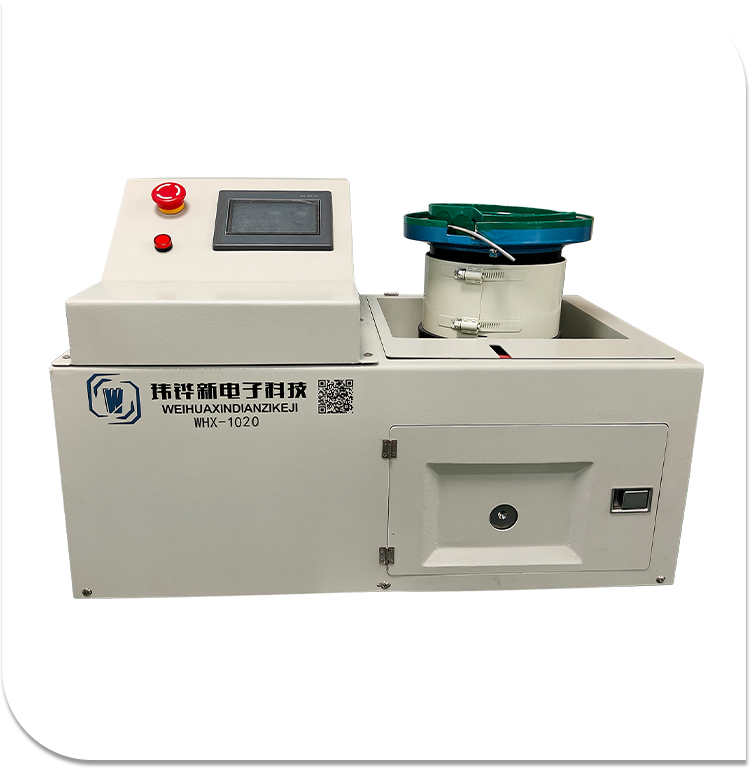

SMA Male Pin Crimping Machine
SMA Male Pin Riveting, Positioning And Forming Machine
WHX-1020
Send Inquiry
Product Description
The SMA male pin crimping machine is a specialized automated crimping device tailored for the RF connector industry, focusing on the precise assembly of SMA male pins and connector components. Designed for high-volume production in electronic components and communication equipment manufacturing, thisSMA male pin crimping machine combines user-friendly operation with consistent, reliable performance to streamline workflows.
Product Parameter
Equipment model：WHX-1020
Power supply：AC220V 50/60HZ
Production Rate：720~1800 pcs/h
Dimensions：L530*W480*H390 mm
Weight：37KG
Power supply：AC220V 50/60HZ
Production Rate：720~1800 pcs/h
Dimensions：L530*W480*H390 mm
Weight：37KG
Product Feature
Core Selling Points
1.Intelligent Control: Features a touchscreen interface paired with an emergency stop button for intuitive, safe operation. Users can quickly adjust crimping parameters, ensuring flexibility across production lines.
2.Precise Crimping: Utilizes a customized crimping structure to stabilize force and stroke control, guaranteeing assembly accuracy for SMA male pins and minimizing defects.
3.Strong Compatibility: Supports multiple SMA male pin specifications, meeting diverse connector production needs without requiring manual tool changes.
4.High-Efficiency Operation: Automates crimping processes to replace manual labor, boosting productivity by up to 300% while reducing human errors.
Product Advantages
1.Professionalism: Developed exclusively for SMA male pin applications, thisSMA male pin crimping machine outperforms general-purpose crimpers in compatibility and precision.
2.Stability: A robust integrated machine body and precision-engineered transmission components ensure low error rates during extended operation cycles.
3.Easy Maintenance: Modular design simplifies component replacement and routine maintenance, reducing downtime and service costs.
4.Safety: Equipped with an emergency stop button and enclosed working area to mitigate risks during production, protecting both operators and equipment.
Operating Instructions
1.Preparation: Connect theSMA male pin crimping machine to the power supply and verify that the crimping die matches the SMA male pin specification.
2.Parameter Setting: Input crimping force, stroke, and other parameters via the touchscreen, then confirm and save settings.
3.Loading: Position connector components and SMA male pins into the designated crimping station, ensuring proper alignment.
4.Start-Up: Press the start button; the machine automatically performs the crimping operation with consistent force and precision.
5.Unloading: Retrieve finished products and reload components for continuous mass production.
6.Shutdown: Turn off the power supply after use and clean the working area to maintain optimal performance.
1.Intelligent Control: Features a touchscreen interface paired with an emergency stop button for intuitive, safe operation. Users can quickly adjust crimping parameters, ensuring flexibility across production lines.
2.Precise Crimping: Utilizes a customized crimping structure to stabilize force and stroke control, guaranteeing assembly accuracy for SMA male pins and minimizing defects.
3.Strong Compatibility: Supports multiple SMA male pin specifications, meeting diverse connector production needs without requiring manual tool changes.
4.High-Efficiency Operation: Automates crimping processes to replace manual labor, boosting productivity by up to 300% while reducing human errors.
Product Advantages
1.Professionalism: Developed exclusively for SMA male pin applications, thisSMA male pin crimping machine outperforms general-purpose crimpers in compatibility and precision.
2.Stability: A robust integrated machine body and precision-engineered transmission components ensure low error rates during extended operation cycles.
3.Easy Maintenance: Modular design simplifies component replacement and routine maintenance, reducing downtime and service costs.
4.Safety: Equipped with an emergency stop button and enclosed working area to mitigate risks during production, protecting both operators and equipment.
Operating Instructions
1.Preparation: Connect theSMA male pin crimping machine to the power supply and verify that the crimping die matches the SMA male pin specification.
2.Parameter Setting: Input crimping force, stroke, and other parameters via the touchscreen, then confirm and save settings.
3.Loading: Position connector components and SMA male pins into the designated crimping station, ensuring proper alignment.
4.Start-Up: Press the start button; the machine automatically performs the crimping operation with consistent force and precision.
5.Unloading: Retrieve finished products and reload components for continuous mass production.
6.Shutdown: Turn off the power supply after use and clean the working area to maintain optimal performance.
