Automatic Soldering Machine
FPC Board Automatic Spot Tin Soldering Iron Machine
Automatic Soldering Machine
Send Inquiry
Product Description

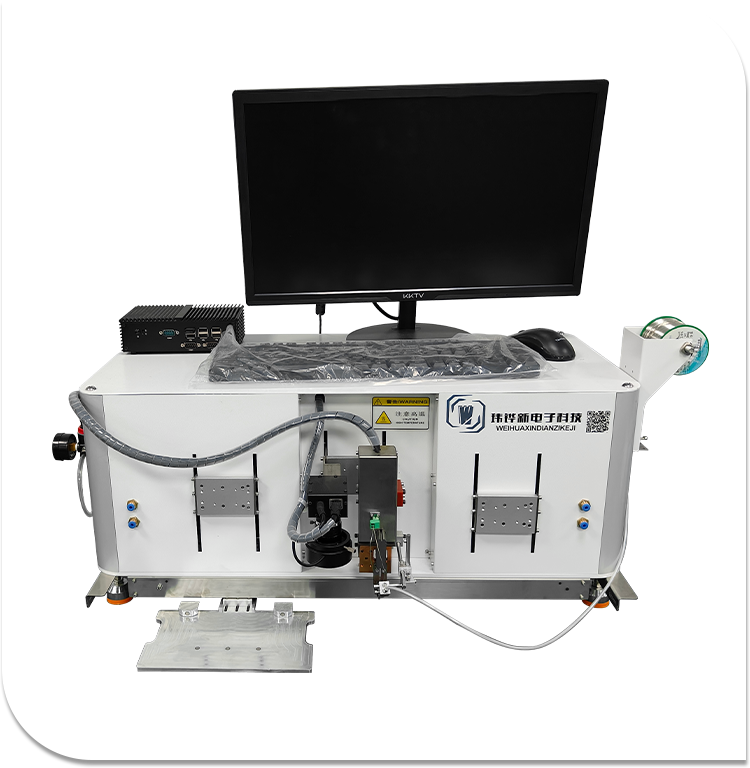

The automatic soldering machine is a cutting-edge piece of equipment that integrates an intelligent control system. This system comprises a high-definition display and an industrial control host, which work in tandem with a precision welding mechanism and a solder feeding assembly. Together, these components enable the automatic soldering machine to perform automated soldering operations on a variety of products, including electronic components and wire harness terminals. Ideal for use in scenarios such as factory production lines and electronic maintenance workshops, the automatic soldering machine can effectively replace manual labor, carrying out high-precision and high-repeatability soldering processes with ease.
Product Parameter
Power supply：AC220V 50/60HZ
Power：700W
Operational accuracy：±0.01mm
Maximum speed：4,000 solder joints / H
temperature range ：0-600°
Dimensions： L750*W350*H350 mm
Power：700W
Operational accuracy：±0.01mm
Maximum speed：4,000 solder joints / H
temperature range ：0-600°
Dimensions： L750*W350*H350 mm
Product Feature
Core Selling Points
1.Intelligent Control: The automatic soldering machine is equipped with a high-definition display and an industrial control host, supporting visual programming and parameter debugging. This makes the operation intuitive and user-friendly, enhancing the overall user experience.
2.Precision Welding: Thanks to its high-precision soldering mechanism, the automatic soldering machine can precisely control the soldering temperature, solder feeding volume, and welding time. This ensures uniform and aesthetically pleasing solder joints, meeting the highest quality standards.
3.High Compatibility: With multiple reserved installation stations, the automatic soldering machine is compatible with workpiece fixtures of different specifications. This versatility allows it to meet the soldering requirements of a wide range of products, making it a valuable addition to any production line.
4.Automatic Solder Feeding: The automatic soldering machine features a built-in automatic solder feeding assembly. This allows for adjustable solder feeding speed and length, reducing manual intervention and significantly improving operation efficiency.
Product Advantages
1.vs.Manual Soldering: The automatic soldering machine eliminates the instability associated with manual operations, ensuring high consistency of solder joints. It also reduces health risks for workers during long-term soldering by minimizing their exposure to fumes and high temperatures.
2.vs.Traditional Equipment: The intelligent system of the automatic soldering machine supports quick changeover and debugging for multi-category product adaptation. Combined with automated solder feeding and precise temperature control, it reduces solder waste and improves product yield, making it a more cost-effective solution.
3.Ease of Operation: The visual interface and preset welding programs of the automatic soldering machine allow new operators to master the operation after simple training. This lowers the employment threshold and makes it easier for businesses to find and train qualified personnel.
Operating Instructions
1.Equipment Preparation: Connect the power supply and air source to the automatic soldering machine, and check whether the solder wire of the solder feeding assembly is properly installed.
2.Parameter Setting: Use the display screen to select or edit the welding program, and set parameters such as soldering temperature, solder feeding volume, and welding time. These settings are crucial for achieving optimal soldering results with the automatic soldering machine.
3.Workpiece Clamping: Fix the workpiece to be soldered on the fixture of the corresponding station on the automatic soldering machine, ensuring accurate positioning for precise soldering.
4.Start Operation: After confirming that the parameters and workpiece are correctly set up, press the start button on the automatic soldering machine. The equipment will then automatically complete the processes of solder feeding, heating, and welding.
5.Completion of Operation: After welding, the automatic soldering machine will automatically reset, and the workpiece can be removed. For product changeover, simply re-adjust the fixture and parameters on the automatic soldering machine before repeating the operation.
1.Intelligent Control: The automatic soldering machine is equipped with a high-definition display and an industrial control host, supporting visual programming and parameter debugging. This makes the operation intuitive and user-friendly, enhancing the overall user experience.
2.Precision Welding: Thanks to its high-precision soldering mechanism, the automatic soldering machine can precisely control the soldering temperature, solder feeding volume, and welding time. This ensures uniform and aesthetically pleasing solder joints, meeting the highest quality standards.
3.High Compatibility: With multiple reserved installation stations, the automatic soldering machine is compatible with workpiece fixtures of different specifications. This versatility allows it to meet the soldering requirements of a wide range of products, making it a valuable addition to any production line.
4.Automatic Solder Feeding: The automatic soldering machine features a built-in automatic solder feeding assembly. This allows for adjustable solder feeding speed and length, reducing manual intervention and significantly improving operation efficiency.
Product Advantages
1.vs.Manual Soldering: The automatic soldering machine eliminates the instability associated with manual operations, ensuring high consistency of solder joints. It also reduces health risks for workers during long-term soldering by minimizing their exposure to fumes and high temperatures.
2.vs.Traditional Equipment: The intelligent system of the automatic soldering machine supports quick changeover and debugging for multi-category product adaptation. Combined with automated solder feeding and precise temperature control, it reduces solder waste and improves product yield, making it a more cost-effective solution.
3.Ease of Operation: The visual interface and preset welding programs of the automatic soldering machine allow new operators to master the operation after simple training. This lowers the employment threshold and makes it easier for businesses to find and train qualified personnel.
Operating Instructions
1.Equipment Preparation: Connect the power supply and air source to the automatic soldering machine, and check whether the solder wire of the solder feeding assembly is properly installed.
2.Parameter Setting: Use the display screen to select or edit the welding program, and set parameters such as soldering temperature, solder feeding volume, and welding time. These settings are crucial for achieving optimal soldering results with the automatic soldering machine.
3.Workpiece Clamping: Fix the workpiece to be soldered on the fixture of the corresponding station on the automatic soldering machine, ensuring accurate positioning for precise soldering.
4.Start Operation: After confirming that the parameters and workpiece are correctly set up, press the start button on the automatic soldering machine. The equipment will then automatically complete the processes of solder feeding, heating, and welding.
5.Completion of Operation: After welding, the automatic soldering machine will automatically reset, and the workpiece can be removed. For product changeover, simply re-adjust the fixture and parameters on the automatic soldering machine before repeating the operation.
