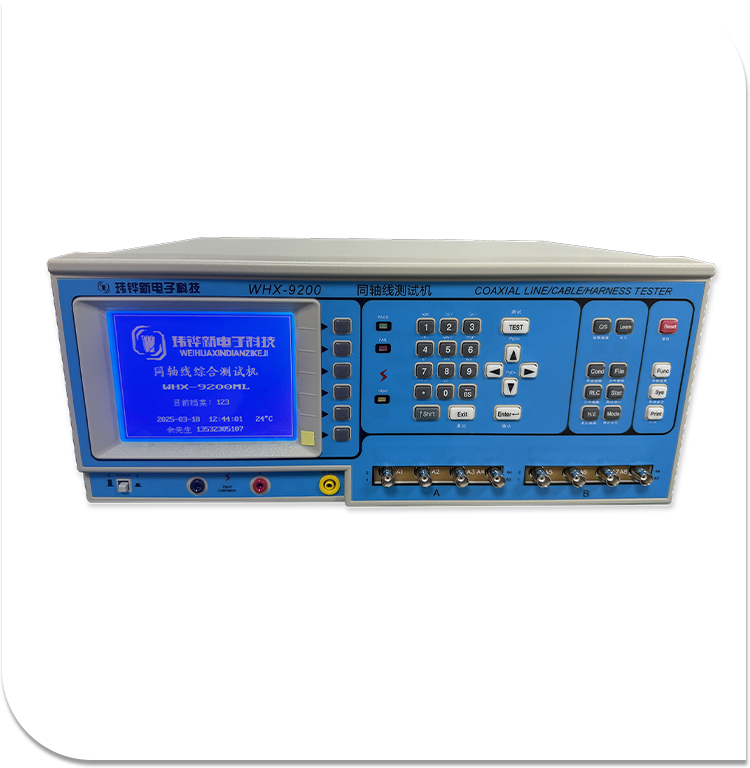

Coaxial Cable Test Machine Machine
Coaxial Cable High-frequency Impedance Tester
WHX-9200
Send Inquiry
Product Description
This coaxial cable test machine machine is a specialized solution designed for comprehensive electrical performance testing of coaxial cables and wire harnesses. It rapidly and accurately measures critical parameters such as continuity, insulation, impedance, and capacitance, making it indispensable for cable production and quality inspection workflows. By integrating multiple testing functions into a single device, this coaxial cable test machine machine enhances efficiency and ensures stringent quality control standards.
Product Parameter
Test Range：8 pin
Short(Broken)-circuit Test Range：1KΩ-100Ω
Test Speed：8pin / 1 ms
Electric resistance Test Range：0.1Ω~1MΩ
Diode test Range：0.0V~7.5V
Capacitance test range：10pF~10uF
Test range of instantaneous short(Broken) circuit：1KΩ~100KΩ
instantaneous Guide the test range： 0.1~50Ω
Test range of conduction resistance：0.1~50Ω
Test Power：DC 50-700V ; AC 100-700V
Insulating impedance test Range：0.1M~500MΩ
High-voltage arc test level：0-9 level
Leakage current test range：High pressure DC 1uA-500uA High pressure AC 0.1mA-5mA
Application field：test coaxial cables, test fakra cables
Short(Broken)-circuit Test Range：1KΩ-100Ω
Test Speed：8pin / 1 ms
Electric resistance Test Range：0.1Ω~1MΩ
Diode test Range：0.0V~7.5V
Capacitance test range：10pF~10uF
Test range of instantaneous short(Broken) circuit：1KΩ~100KΩ
instantaneous Guide the test range： 0.1~50Ω
Test range of conduction resistance：0.1~50Ω
Test Power：DC 50-700V ; AC 100-700V
Insulating impedance test Range：0.1M~500MΩ
High-voltage arc test level：0-9 level
Leakage current test range：High pressure DC 1uA-500uA High pressure AC 0.1mA-5mA
Application field：test coaxial cables, test fakra cables
Product Feature
Core Selling Points
1.Multi-Parameter Integrated Testing: The coaxial cable test machine machine supports multi-dimensional evaluations, including continuity (Cond), RLC (resistance/inductance/capacitance), and high-voltage (H.V.) insulation testing. This all-in-one capability covers all core performance indicators for coaxial cables.
2.Intelligent & High-Efficiency: Equipped with a digital display and intuitive key operation panel, the machine stores test profiles (e.g., current profile: 123) and enables batch testing with data logging. This makes it ideal for high-throughput production line environments.
3.Accurate & Stable: A built-in calibration function (via the Calibration interface) and real-time temperature display (24℃) ensure consistent, precise test results, minimizing variability in coaxial cable assessments.
Product Advantages
1.User-Friendly Operation: Features a Chinese-language interface and clearly labeled keys, allowing novice operators to master the coaxial cable test machine machine quickly.
2.Comprehensive Functions: Combines continuity, RLC, and high-voltage testing in one unit, eliminating the need for separate equipment and streamlining workflows.
3.Strong Adaptability: Equipped with multi-channel interfaces (8 test ports across Zones A and B), the machine supports testing of coaxial cables in various specifications and configurations.
Operating Instructions
1.Startup Preparation: After connecting to the power supply, the coaxial cable test machine machine automatically displays the startup interface, showing profiles, time, and temperature.
2.Parameter Setting: Use numeric and function keys (e.g., "Cond," "RLC," "H.V.") to select test items and set qualified thresholds for coaxial cable evaluation.
3.Calibration (Optional): Connect calibration components to the "Calibration" interface and follow on-screen prompts to enhance testing accuracy.
4.Testing Operation: Attach the coaxial cable to the designated ports in Zones A and B, then press the "TEST" button. The machine automatically determines "PASS/FAIL" and displays results.
5.Data Management: Store test data via the "File" button and generate printable reports using the "Print" function (requires an external printer).
1.Multi-Parameter Integrated Testing: The coaxial cable test machine machine supports multi-dimensional evaluations, including continuity (Cond), RLC (resistance/inductance/capacitance), and high-voltage (H.V.) insulation testing. This all-in-one capability covers all core performance indicators for coaxial cables.
2.Intelligent & High-Efficiency: Equipped with a digital display and intuitive key operation panel, the machine stores test profiles (e.g., current profile: 123) and enables batch testing with data logging. This makes it ideal for high-throughput production line environments.
3.Accurate & Stable: A built-in calibration function (via the Calibration interface) and real-time temperature display (24℃) ensure consistent, precise test results, minimizing variability in coaxial cable assessments.
Product Advantages
1.User-Friendly Operation: Features a Chinese-language interface and clearly labeled keys, allowing novice operators to master the coaxial cable test machine machine quickly.
2.Comprehensive Functions: Combines continuity, RLC, and high-voltage testing in one unit, eliminating the need for separate equipment and streamlining workflows.
3.Strong Adaptability: Equipped with multi-channel interfaces (8 test ports across Zones A and B), the machine supports testing of coaxial cables in various specifications and configurations.
Operating Instructions
1.Startup Preparation: After connecting to the power supply, the coaxial cable test machine machine automatically displays the startup interface, showing profiles, time, and temperature.
2.Parameter Setting: Use numeric and function keys (e.g., "Cond," "RLC," "H.V.") to select test items and set qualified thresholds for coaxial cable evaluation.
3.Calibration (Optional): Connect calibration components to the "Calibration" interface and follow on-screen prompts to enhance testing accuracy.
4.Testing Operation: Attach the coaxial cable to the designated ports in Zones A and B, then press the "TEST" button. The machine automatically determines "PASS/FAIL" and displays results.
5.Data Management: Store test data via the "File" button and generate printable reports using the "Print" function (requires an external printer).
