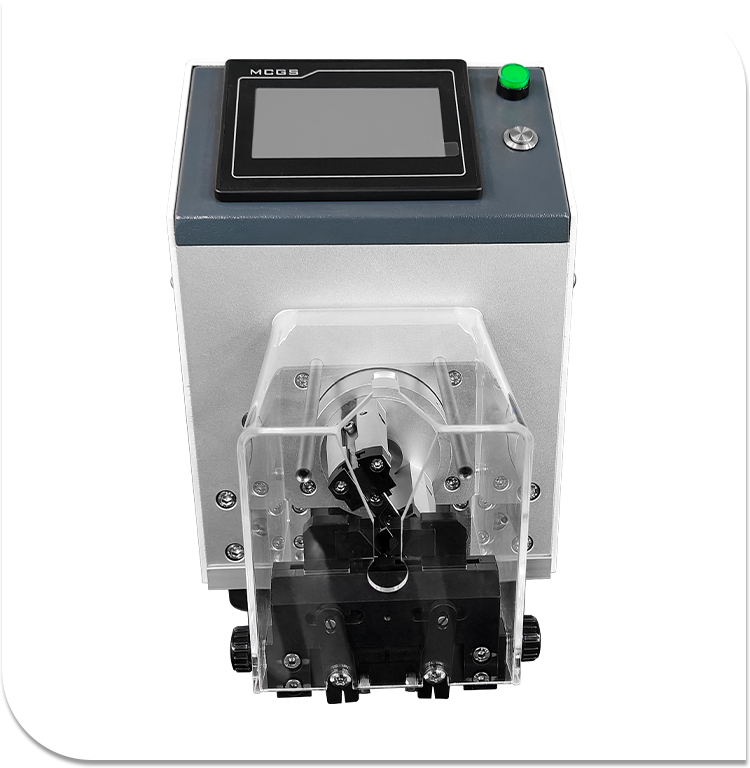

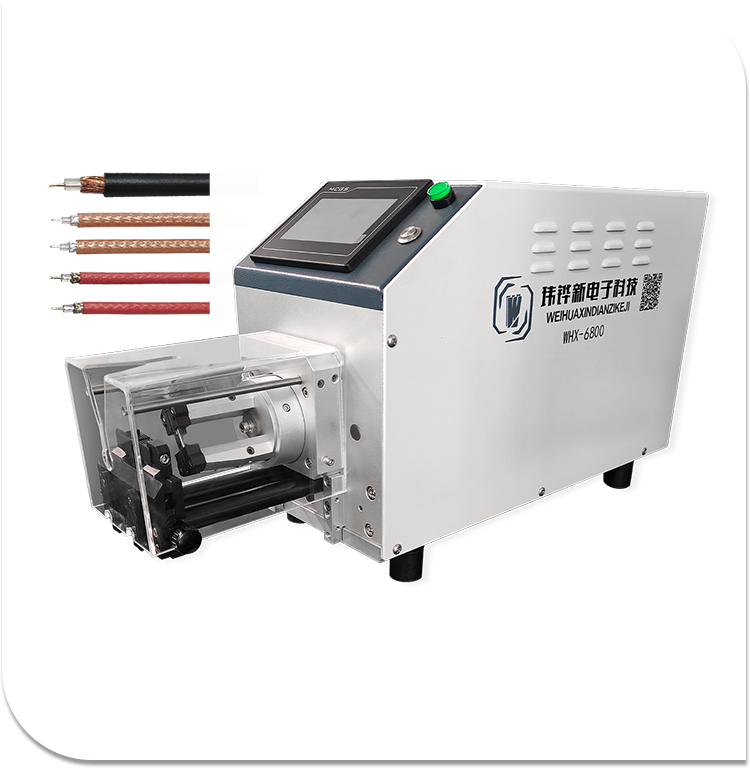

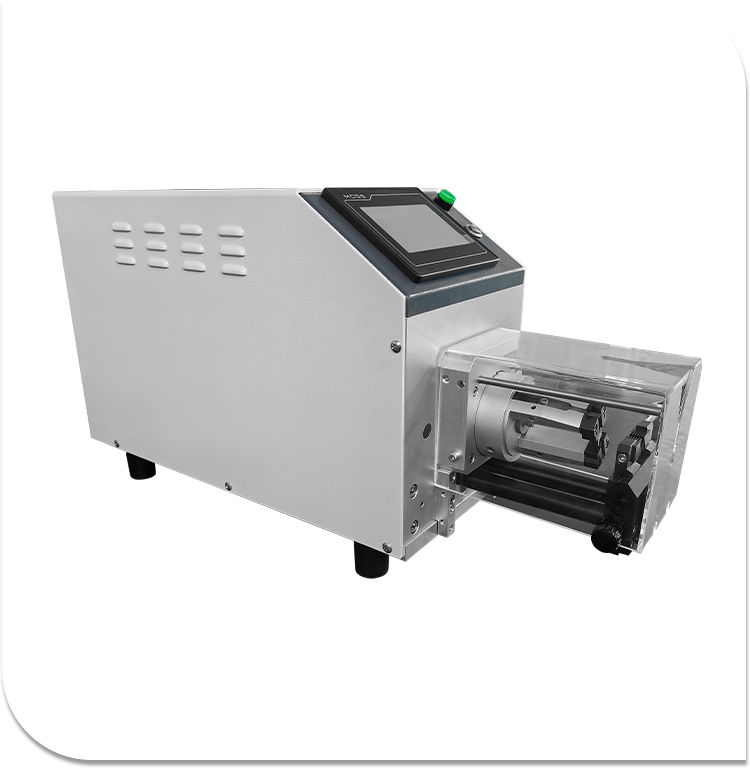

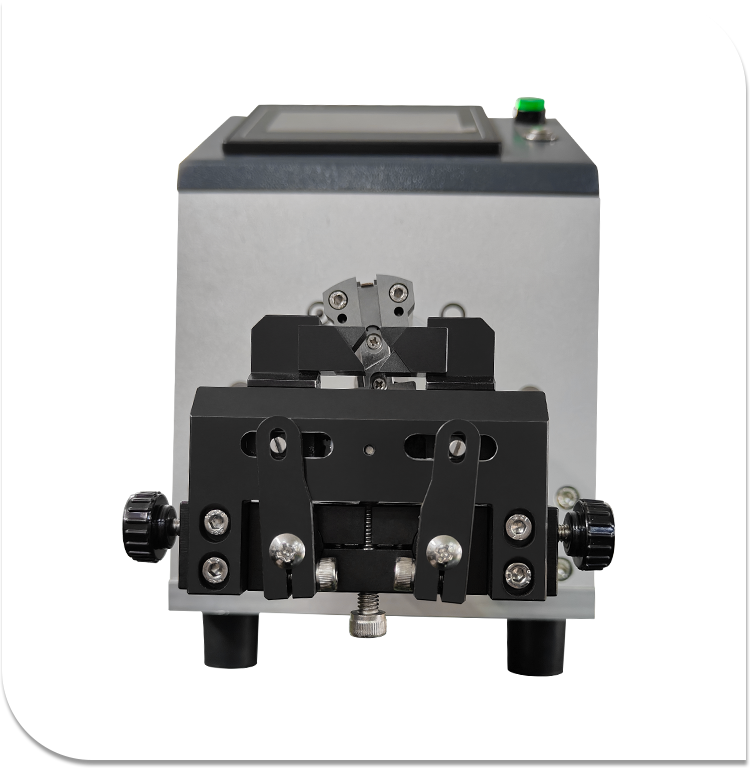

Semi Automatic Coaxial Cable Stripping Machine

The semi automatic coaxial cable stripping machine is a specialized solution tailored for the communications, automotive, and new energy sectors. Leveraging a rotary tool rest and coaxial centering technology, this semi automatic coaxial cable stripping machine precisely processes multi-layer coaxial cable structures—including outer sheaths, shielding braids, and insulating layers—enabling one-step stripping of up to nine layers. Designed to replace manual labor, it ensures unmatched precision and efficiency in coaxial cable preparation.

Stripping Length：0.1-48mm

Stripping Range：0.3-7.5mm

Power supply:AC220V/50HZ/250W

Weight：19kg

Dimensions：L190*W285*H530 mm

Max Stripping Layers：9 Layers

Production Rate:700 pcs/h

Start-up method:Foot switch

Core Selling Points

1.Precise Multi-Layer Stripping: The semi automatic coaxial cable stripping machine handles cables with up to nine layers (sheath, shielding, insulation, etc.). Its 360° rotary circular cutting guarantees flat, burr-free stripping ports without damaging the inner core conductor.

2.Micron-Level Processing Precision: Stripping length accuracy reaches 0.01mm, with cutting depth adjustments in 0.01mm increments, suitable for Teflon, PVC, and other insulating materials.

3.Convenient & Intelligent Operation: Features a touchscreen with data storage for saving multiple parameter sets, eliminating repetitive setups during cable changes. Supports foot pedal or manual start modes for versatile use.

4.High Compatibility: Works with flexible/semi-flexible coaxial cables (0.2–7.5mm diameter), covering communication RF cables, automotive wiring harnesses, and new energy cables.

Product Advantages

1.Efficiency Improvement: Processes a single cable in seconds, achieving a daily output of 600–800 units (depending on specifications). Replaces 2–3 manual stripping workers.

2.Stable Quality: Combines a rotary cutter with imported tungsten steel blades to maintain a stripping yield rate of ≥99.5%, avoiding shielding damage or inner core scratches common in manual operations.

3.Strong Durability: Core components use imported lead screws and wear-resistant cutters, extending blade life by 30% compared to standard models and reducing maintenance costs.

4.Compact & Flexible: Weighing just 19kg with a small footprint, this machine optimizes workspace usage without compromising performance.

Operating Instructions

1.Pre-Production Preparation: Organize coaxial cables and confirm diameter compatibility. Power on the machine and select pre-stored parameters via the touchscreen (or manually set layers, length, and depth).

2.Start Processing: Insert the cable into the clamping port, activate via foot pedal or manual button, and let the machine automatically clamp, strip, and peel the sheath. Retrieve the stripped cable and repeat for continuous operation.

3.Cable Changeover Operation: Load new parameters via the touchscreen—no tool changes required. Test 1–2 units to verify stripping quality before mass production.

4.Daily Maintenance: Clear residual waste after processing. Monthly blade inspections and timely replacement of tungsten steel blades ensure consistent performance.
