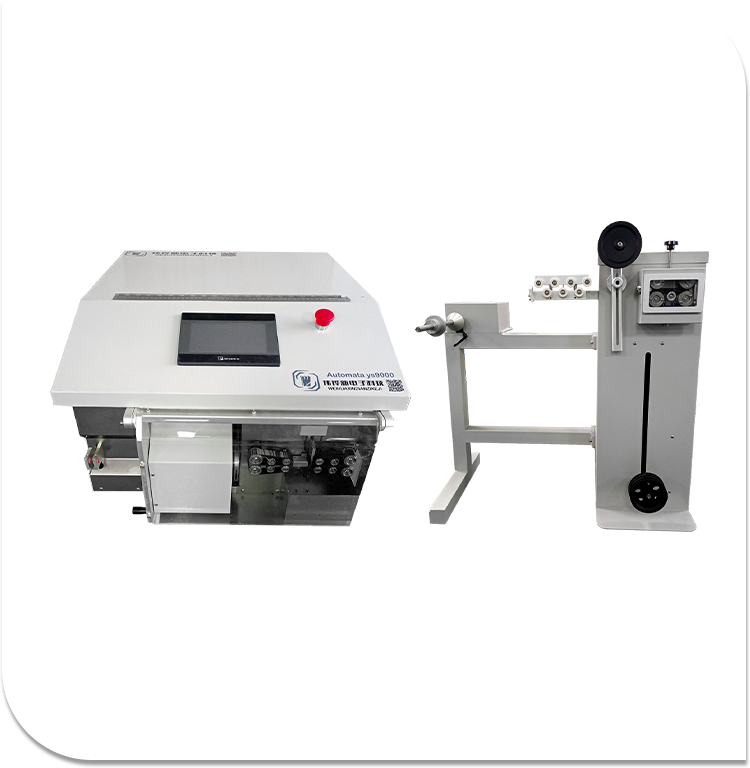

Fully Automatic Coaxial Cable Stripping Machine

The Automatic fully automatic coaxial cable stripping machine is a specialized automated processing equipment meticulously designed for coaxial cables. This fully automatic coaxial cable stripping machine enables precise cable cutting and multi-layer stripping, encompassing the removal of the outer sheath, shielding layer, insulation layer, and more. It is ideally suited for cable processing scenarios within electronic manufacturing, communication equipment, and automotive wiring harness industries, offering a streamlined solution for complex cable preparation tasks.

Production Rate：1200 pcs/h

Stripping Range： OD 0.64mm-3.5mm

Cutting Length：25mm-4999mm

Stripping  Length：1mm-99mm

Max  Stripping Layers：3 Layers

Power supply：AC220V/AC110V

Weight：130 kg

Dimensions：L720*W660*H450 mm

Power：2800W

Core Selling Points

1.Full Automatic Integration: The entire process of this fully automatic coaxial cable stripping machine—from cable pay-off and feeding to cutting and layer-by-layer stripping—is fully automated, requiring no manual intervention. This significantly reduces manual operations, enhancing workflow efficiency and reducing labor costs.

2.High-precision Processing: Compatible with coaxial cables of diverse specifications, this fully automatic coaxial cable stripping machine accurately controls the stripping length and depth of each layer, ensuring the delicate inner core remains undamaged. This precision is crucial for maintaining cable integrity and performance in high-stakes applications.

3.Intelligent Control: Equipped with a Weinview touch screen, this fully automatic coaxial cable stripping machine offers intuitive parameter setting, supports the storage of multiple processing programs, and allows for quick program switching. This intelligence simplifies operation and enhances flexibility, catering to varying production demands.

Product Advantages

1.Efficiency Improvement: By replacing traditional manual or semi-automatic stripping methods, this fully automatic coaxial cable stripping machine achieves a fast processing speed, resulting in a significantly higher daily output compared to manual operations. This boost in efficiency accelerates production cycles and increases throughput.

2.Strong Consistency: The standardized machine operation eliminates errors caused by manual work, ensuring uniform stripping quality for every cable processed. This consistency is vital for maintaining product reliability and meeting stringent industry standards.

3.Wide Compatibility: This fully automatic coaxial cable stripping machine works seamlessly with coaxial cables of various wire diameters and layer structures, meeting the diverse processing requirements of different products. This versatility makes it a valuable asset in multi-product manufacturing environments.

Operating Instructions

1.Pay-off Preparation: Mount the coaxial cable reel on the pay-off stand located on the right side of the machine. Straighten the cable using guide pulleys and feed it into the inlet of the main unit, ensuring smooth and tangle-free feeding.

2.Parameter Setting: On the Weinview touch screen, select or input the cable specifications, including cable length and the stripping length of each layer. Save the processing program for future use or quick retrieval.

3.Start Operation: Press the start button adjacent to the emergency stop switch. The equipment will automatically complete cable feeding, cutting, and layer-by-layer stripping processes. Collect the finished products from the outlet once the cycle is complete.

4.Maintenance Tips: Regularly clean the stripping debris to prevent buildup that could affect machine performance. Inspect the wear condition of rollers and cutters periodically, and replace vulnerable parts in a timely manner to maintain optimal cutting precision and efficiency.
