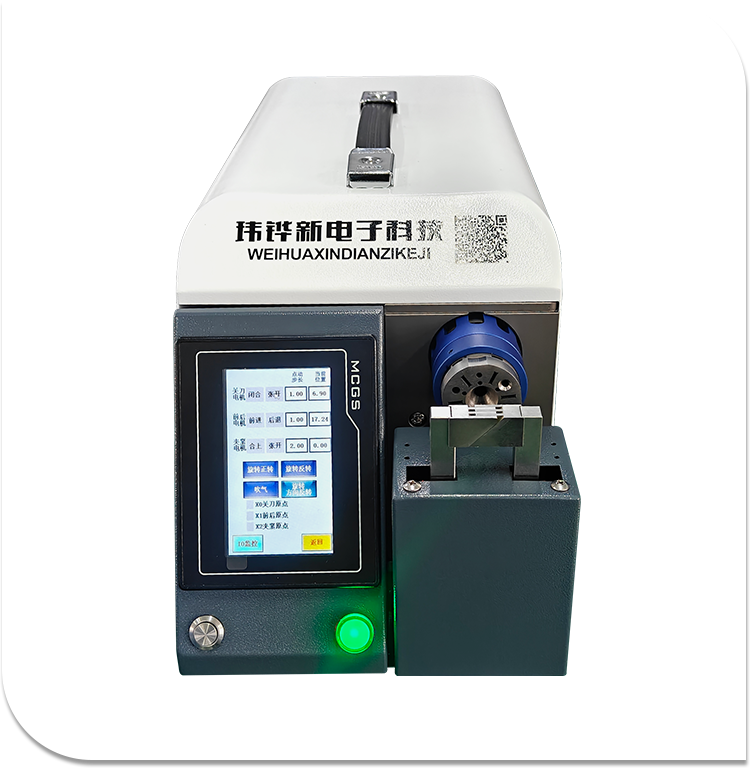

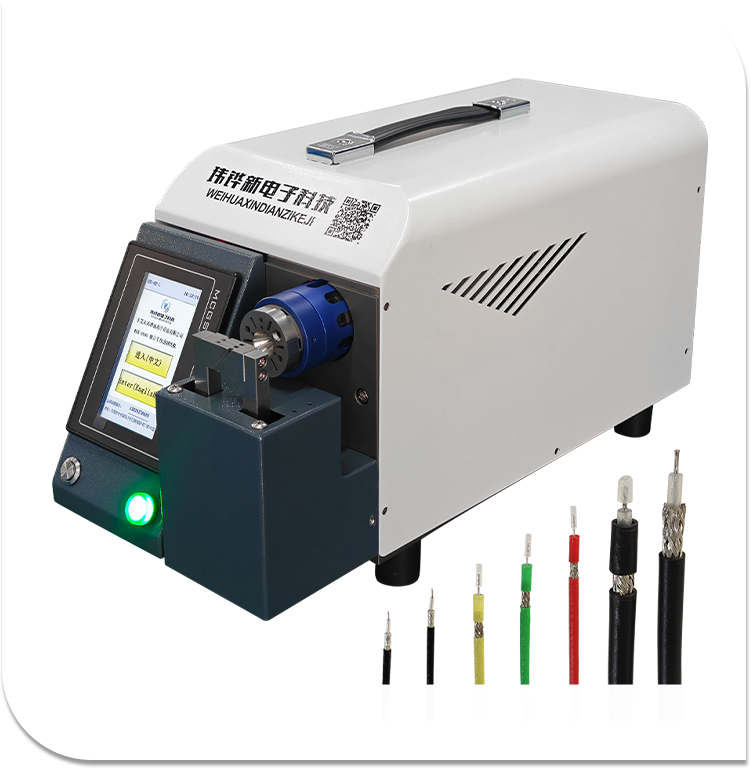

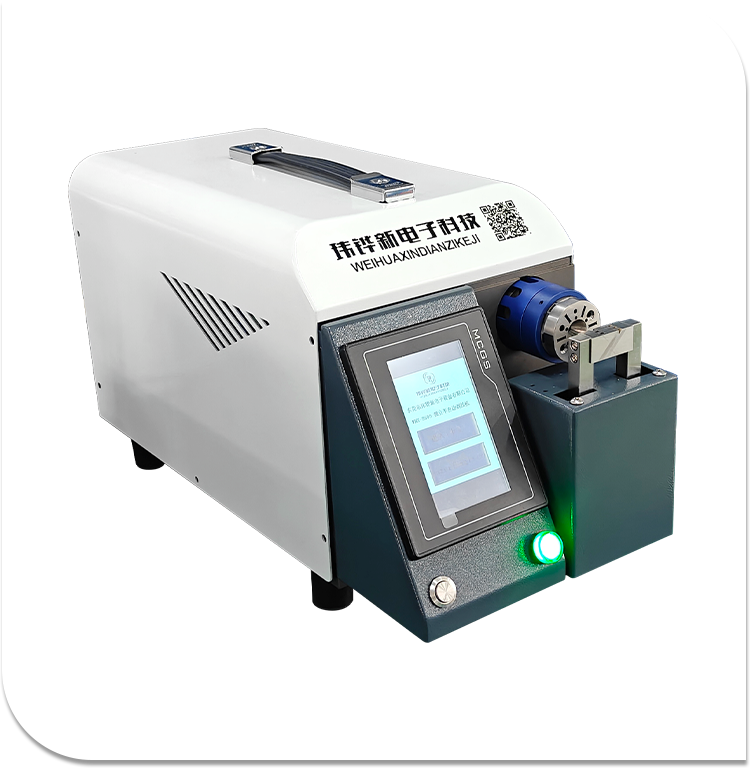

Semi Automatic Coaxial Cable Multi Layer Shield Stripping Machine

This semi automatic coaxial cable multi layer shield stripping machine is engineered for precision processing of electronic wires, shielded wires, and multi-core cables, particularly those requiring multi-layer insulation/shield stripping. It efficiently handles single-core and multi-core wires (0.6–4.5mm diameter) through a streamlined "wire cutting → multi-layer insulation/shield stripping" workflow. Designed for small-to-medium batch wire harness production, this machine replaces manual stripping, ensuring consistent quality and cost savings.

Stripping  Length：0.1-45mm

Stripping Range：OD 0.6-4.5mm

Max  Stripping Layers：9 Layers

Power：0.18KW

Power supply：AC220V/50HZ

Dimensions：L460*W200*H250 mm

Weight：15KG

Cutting Depth Resolition：0.01mm

Core Selling Points

1.Flexible Semi-Automatic Adaptability: Combines touchscreen parameter presets, manual feeding, and automatic stripping to balance small-batch flexibility with high-efficiency processing.

2.Wide Compatibility with Multiple Specifications: Supports electronic wires, shielded wires, and common wire harnesses (0.6–4.5mm diameter), including coaxial cables requiring multi-layer shield removal.

3.Precision Stripping with Minimal Damage: Achieves ±0.1mm accuracy for insulation/shield layers, preventing wire core scratches and incomplete stripping—critical for the 4.semi automatic coaxial cable multi layer shield stripping machine’s application in high-stakes industries.

5.Intuitive Status Monitoring: Real-time touchscreen displays processing parameters, with instant alerts for blade wear, parameter errors, or operational issues.

Product Advantages

1.Scene-Matched Efficiency: Processes a single wire in ≤20 seconds, with a daily output exceeding 3,000 units—replacing 1–2 manual operators.

2.Stable Quality: Maintains a stripping yield rate ≥99.5%, eliminating inconsistencies like uneven lengths or wire core damage common in manual methods.

Cost-Friendly: Reduces blade consumption by 10% and costs just 30% of fully automatic alternatives, making the Semi Automatic Coaxial Cable Multi Layer Shield Stripping 3.Machine ideal for budget-conscious operations.

4.Low Learning Threshold: New operators can master regular stripping tasks after 30 minutes of training, thanks to its simplified workflow.

Usage Instructions

1.Pre-Production Preparation: Organize wires and set parameters (diameter, stripping length, cutting size) via the touchscreen, ensuring compatibility with coaxial or shielded cables.

5.Stripping Operation: Insert the wire into the front fixture, clamp it, and press start. The machine automatically cuts and strips multi-layer shields/insulation.

3.Model Change Adjustment: For new wire specifications, update parameters on the touchscreen and manually adjust fixture spacing to accommodate varying diameters.

4.Daily Maintenance: Clear residual wire fragments from the fixture after each shift, inspect blade sharpness weekly, and replace blades promptly when worn.
