Full Automatic Servo Single Head Intelligent Terminal Crimping Machine

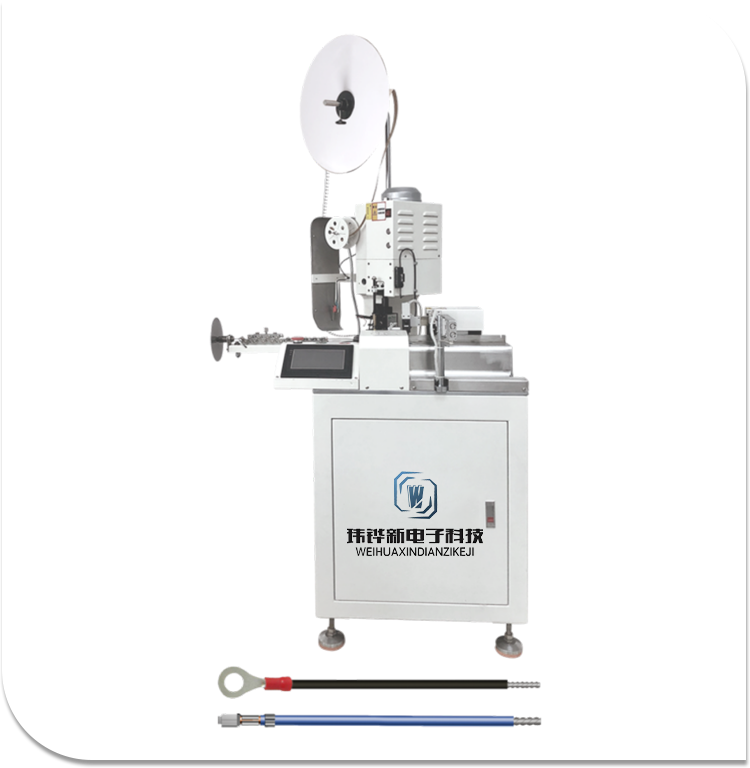

Full-automatic Servo Single-head Intelligent Terminal Crimping Machine
WHX-018HS
Send Inquiry
Product Description
This full automatic servo single head intelligent terminal crimping machine is a servo-driven, fully automatic single-head tin-dipping terminal crimping device designed to streamline wire harness processing. It can automatically complete processes such as wire cutting, stripping, tin dipping, and terminal crimping with exceptional precision and efficiency. Compatible with various specifications of wires and terminals, the full automatic servo single head intelligent terminal crimping machine is primarily used in the wire harness processing field, including wiring production for home appliances, automobiles, and electronic devices. By replacing manual operations, this machine significantly improves the efficiency and consistency of wire harness production, ensuring high-quality results every time.
Product Parameter
Production Rate：1800PCS / H
Application field：It is used for stripping wires and crimping terminals at one end, and stripping wires and
tinning at the other end.
Cables Specification：AWG28#-AWG12#
Cutting Length：45-9999mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：0.5mm + Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L965W*835*H1860 mm
Application field：It is used for stripping wires and crimping terminals at one end, and stripping wires and
tinning at the other end.
Cables Specification：AWG28#-AWG12#
Cutting Length：45-9999mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：0.5mm + Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L965W*835*H1860 mm
Product Feature
Key Selling Points
1.Full-process automation: After one-button startup, the full automatic servo single head intelligent terminal crimping machine automatically completes the sequence of "wire cutting → stripping → tin dipping → terminal crimping" without requiring manual step-by-step operation, streamlining the entire production process.
2.Precise servo control: Driven by a servo motor, the crimping accuracy of the full automatic servo single head intelligent terminal crimping machine reaches ±0.01mm. The tin dipping amount and stripping length can be precisely adjusted, ensuring consistent and reliable performance across all operations.
3.Strong compatibility: The full automatic servo single head intelligent terminal crimping machine supports processing of different wire diameters and various types of terminals, such as ring terminals and blade terminals, making it versatile and adaptable to diverse production requirements.
4.Intelligent touch operation: Equipped with a high-definition touch screen, parameter settings (including wire length, stripping depth, etc.) on the full automatic servo single head intelligent terminal crimping machine are simple and intuitive. Multiple sets of process recipes can be stored, facilitating quick and easy setup for different production runs.
Product Advantages
1.High efficiency: Processing a single wire takes only 2-3 seconds on the full automatic servo single head intelligent terminal crimping machine, with a daily output of over 10,000 wires, significantly boosting production throughput and meeting high-volume demands.
2.Stable quality: Servo crimping combined with automatic tin dipping on the full automatic servo single head intelligent terminal crimping machine avoids manual operation errors, such as loose terminal crimping and uneven tin dipping, ensuring consistent and reliable product quality.
3.Cost-saving: The full automatic servo single head intelligent terminal crimping machine replaces 2-3 manual workers, while also reducing waste of wires and terminals, contributing to overall cost savings and improved profitability.
4.Easy maintenance: The modular design of the full automatic servo single head intelligent terminal crimping machine allows for convenient replacement of key components, such as crimping molds, and the equipment has a low failure rate, minimizing downtime and maintenance costs.
Operating Instructions
1.Preparations: Load the terminal roll onto the terminal rack, place the wire into the wire inlet, and connect the power supply and air source to the full automatic servo single head intelligent terminal crimping machine.
2.Parameter setting: Enter process parameters (including wire length, stripping length, tin dipping time, etc.) via the touch screen, and select the corresponding terminal mold on the full automatic servo single head intelligent terminal crimping machine.
3.Test run: Press the "Test Run" button on the full automatic servo single head intelligent terminal crimping machine, check whether the first product meets the requirements, and fine-tune the parameters until they are up to standard.
4.Mass production: After confirming the parameters, press the "Start" button; the full automatic servo single head intelligent terminal crimping machine will process continuously automatically. During operation, you can monitor the production quantity and status via the touch screen.
5.Shutdown and cleanup: After processing, press the "Stop" button on the full automatic servo single head intelligent terminal crimping machine, turn off the power supply and air source, and clean the tin dross and wire debris on the equipment surface to maintain optimal performance.
1.Full-process automation: After one-button startup, the full automatic servo single head intelligent terminal crimping machine automatically completes the sequence of "wire cutting → stripping → tin dipping → terminal crimping" without requiring manual step-by-step operation, streamlining the entire production process.
2.Precise servo control: Driven by a servo motor, the crimping accuracy of the full automatic servo single head intelligent terminal crimping machine reaches ±0.01mm. The tin dipping amount and stripping length can be precisely adjusted, ensuring consistent and reliable performance across all operations.
3.Strong compatibility: The full automatic servo single head intelligent terminal crimping machine supports processing of different wire diameters and various types of terminals, such as ring terminals and blade terminals, making it versatile and adaptable to diverse production requirements.
4.Intelligent touch operation: Equipped with a high-definition touch screen, parameter settings (including wire length, stripping depth, etc.) on the full automatic servo single head intelligent terminal crimping machine are simple and intuitive. Multiple sets of process recipes can be stored, facilitating quick and easy setup for different production runs.
Product Advantages
1.High efficiency: Processing a single wire takes only 2-3 seconds on the full automatic servo single head intelligent terminal crimping machine, with a daily output of over 10,000 wires, significantly boosting production throughput and meeting high-volume demands.
2.Stable quality: Servo crimping combined with automatic tin dipping on the full automatic servo single head intelligent terminal crimping machine avoids manual operation errors, such as loose terminal crimping and uneven tin dipping, ensuring consistent and reliable product quality.
3.Cost-saving: The full automatic servo single head intelligent terminal crimping machine replaces 2-3 manual workers, while also reducing waste of wires and terminals, contributing to overall cost savings and improved profitability.
4.Easy maintenance: The modular design of the full automatic servo single head intelligent terminal crimping machine allows for convenient replacement of key components, such as crimping molds, and the equipment has a low failure rate, minimizing downtime and maintenance costs.
Operating Instructions
1.Preparations: Load the terminal roll onto the terminal rack, place the wire into the wire inlet, and connect the power supply and air source to the full automatic servo single head intelligent terminal crimping machine.
2.Parameter setting: Enter process parameters (including wire length, stripping length, tin dipping time, etc.) via the touch screen, and select the corresponding terminal mold on the full automatic servo single head intelligent terminal crimping machine.
3.Test run: Press the "Test Run" button on the full automatic servo single head intelligent terminal crimping machine, check whether the first product meets the requirements, and fine-tune the parameters until they are up to standard.
4.Mass production: After confirming the parameters, press the "Start" button; the full automatic servo single head intelligent terminal crimping machine will process continuously automatically. During operation, you can monitor the production quantity and status via the touch screen.
5.Shutdown and cleanup: After processing, press the "Stop" button on the full automatic servo single head intelligent terminal crimping machine, turn off the power supply and air source, and clean the tin dross and wire debris on the equipment surface to maintain optimal performance.
