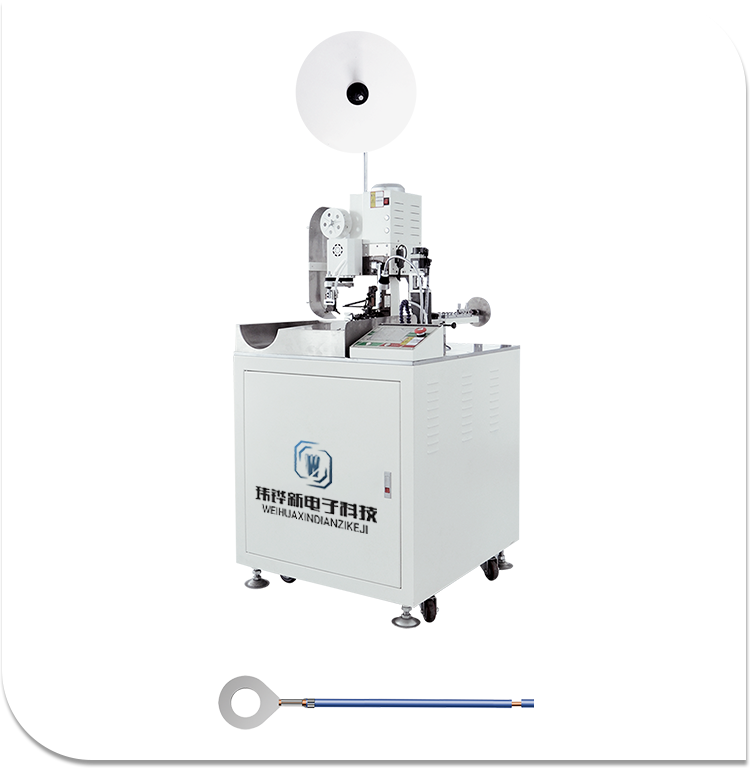

Automate Terminal Crimping Machine
Full-automatic Servo Single-head Intelligent Terminal Crimping Machine
WHX-018H
Send Inquiry
Product Description
This automate terminal crimping machine is a servo-driven, fully automatic single-end terminal crimping device, primarily tailored for the wire processing field. It seamlessly automates a series of procedures, including wire cutting, stripping, and terminal crimping, making it an indispensable tool in production scenarios such as electronic wire harnesses, household appliance wiring, and automotive wire harnesses. By replacing manual operations, thisautomate terminal crimping machine significantly enhances both the efficiency and consistency of wire harness processing.
Product Parameter
Production Rate：4000PCS / H
Application field：It is used for stripping the wire and crimping the terminal at one end, and stripping the wire at the other end.
Cables Specification：AWG28#-AWG12#
Cutting Length：45-9999mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：0.5mm + Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L965*W835*H1860 mm
Application field：It is used for stripping the wire and crimping the terminal at one end, and stripping the wire at the other end.
Cables Specification：AWG28#-AWG12#
Cutting Length：45-9999mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：0.5mm + Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L965*W835*H1860 mm
Product Feature
Core Selling Points
1.Servo-Precise Pressure Control: The crimping action of theautomate terminal crimping machine is driven by a servo motor, enabling precise control over crimping force and stroke. This ensures high stability of terminal crimping and a low defect rate, crucial for maintaining top-notch product quality.
2.Fully Automatic Integration: Thisautomate terminal crimping machine automatically completes the entire process of wire feeding, cutting, stripping, terminal feeding, and crimping, eliminating the need for manual step-by-step operations and streamlining production workflows.
3.Strong Compatibility: It supports a wide range of wire diameters and terminal types, allowing for convenient specification switching. This versatility makes theautomate terminal crimping machine suitable for diverse production requirements.
4.Intelligent Operation: Equipped with a touch screen, theautomate terminal crimping machine allows for parameter presetting and process recipe storage, featuring simple and user-friendly operation that enhances productivity and ease of use.
Product Advantages
1.Higher Efficiency: Theautomate terminal crimping machine can process over 3,000 wires per hour, far exceeding the efficiency of manual operations, thereby significantly boosting production throughput and meeting high-volume demands.
2.More Stable Quality: The servo system of theautomate terminal crimping machine avoids force/position errors caused by manual crimping, ensuring strong consistency in terminal pull-off force and appearance, which is essential for reliable wire harness performance.
3.Lower Cost: It reduces labor costs and material waste (realized through precise cutting and crimping), contributing to overall cost savings and improved profitability for manufacturers utilizing theautomate terminal crimping machine.
4.High Usability: The touch screen enables visualized operation with clear fault alarm prompts, which can be quickly mastered even by novice operators, enhancing the usability and accessibility of theautomate terminal crimping machine.
Operation Instructions
1.Preparation Work: Mount the wire coil on the top wire reel, place the terminals on the terminal reel, and connect the power supply and air source to theautomate terminal crimping machine.
2.Parameter Setting: Select process parameters such as wire length, stripping length, and crimping force via the touch screen, and save the recipe for future use on theautomate terminal crimping machine.
3.Startup and Operation: Press the start button. Theautomate terminal crimping machine will automatically perform wire feeding → cutting → stripping → terminal feeding → crimping, and the finished products will be discharged automatically, ready for the next stage of production.
4.Daily Maintenance: Regularly clean the crimping dies, lubricate the transmission components, and check the remaining quantity of wires and terminals on the reels to ensure optimal performance and longevity of theautomate terminal crimping machine.
1.Servo-Precise Pressure Control: The crimping action of theautomate terminal crimping machine is driven by a servo motor, enabling precise control over crimping force and stroke. This ensures high stability of terminal crimping and a low defect rate, crucial for maintaining top-notch product quality.
2.Fully Automatic Integration: Thisautomate terminal crimping machine automatically completes the entire process of wire feeding, cutting, stripping, terminal feeding, and crimping, eliminating the need for manual step-by-step operations and streamlining production workflows.
3.Strong Compatibility: It supports a wide range of wire diameters and terminal types, allowing for convenient specification switching. This versatility makes theautomate terminal crimping machine suitable for diverse production requirements.
4.Intelligent Operation: Equipped with a touch screen, theautomate terminal crimping machine allows for parameter presetting and process recipe storage, featuring simple and user-friendly operation that enhances productivity and ease of use.
Product Advantages
1.Higher Efficiency: Theautomate terminal crimping machine can process over 3,000 wires per hour, far exceeding the efficiency of manual operations, thereby significantly boosting production throughput and meeting high-volume demands.
2.More Stable Quality: The servo system of theautomate terminal crimping machine avoids force/position errors caused by manual crimping, ensuring strong consistency in terminal pull-off force and appearance, which is essential for reliable wire harness performance.
3.Lower Cost: It reduces labor costs and material waste (realized through precise cutting and crimping), contributing to overall cost savings and improved profitability for manufacturers utilizing theautomate terminal crimping machine.
4.High Usability: The touch screen enables visualized operation with clear fault alarm prompts, which can be quickly mastered even by novice operators, enhancing the usability and accessibility of theautomate terminal crimping machine.
Operation Instructions
1.Preparation Work: Mount the wire coil on the top wire reel, place the terminals on the terminal reel, and connect the power supply and air source to theautomate terminal crimping machine.
2.Parameter Setting: Select process parameters such as wire length, stripping length, and crimping force via the touch screen, and save the recipe for future use on theautomate terminal crimping machine.
3.Startup and Operation: Press the start button. Theautomate terminal crimping machine will automatically perform wire feeding → cutting → stripping → terminal feeding → crimping, and the finished products will be discharged automatically, ready for the next stage of production.
4.Daily Maintenance: Regularly clean the crimping dies, lubricate the transmission components, and check the remaining quantity of wires and terminals on the reels to ensure optimal performance and longevity of theautomate terminal crimping machine.
