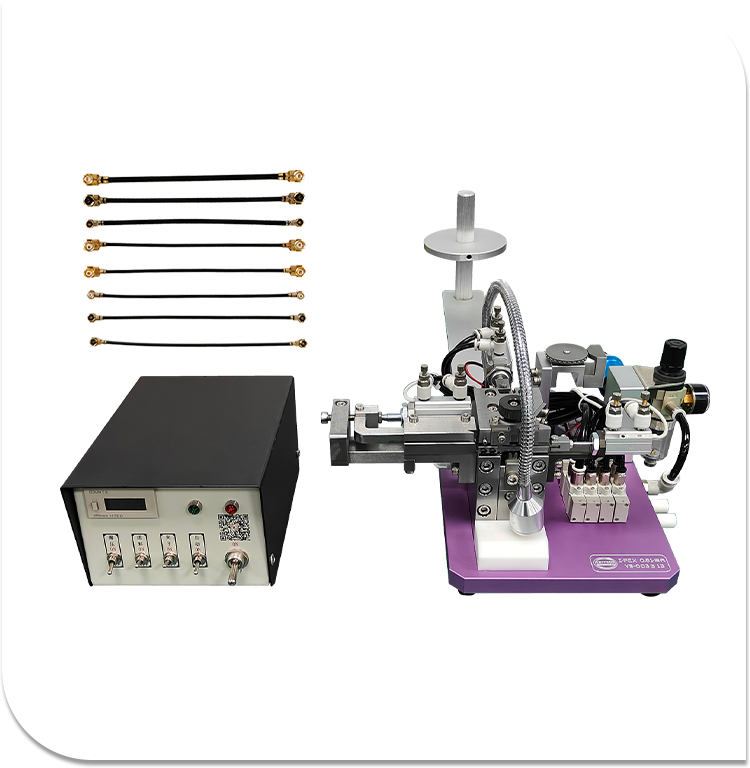

I-PEX Terminals Crimping Machine

The i-pex terminals crimping machine is a specialized manual terminal crimping solution tailored for electronic and multi-core wire applications. Its core function is to streamline terminal positioning and precise crimping, supporting single-core/multi-core wires with diameters of 0.81–1.37mm. Designed for small-to-medium-batch wire harness processing and equipment wiring, this i-pex terminals crimping machine replaces manual crimping pliers, significantly enhancing crimping stability and operational efficiency.

Power supply：AC220V

Power：25W

Weight：7KG

Dimensions：340*530*210 mm

Distribution box size：L140*W200*H100 mm

Core Selling Points

Wide Compatibility with Multiple Specifications: The i-pex terminals crimping machine works seamlessly with electronic wires, sheathed wires, and other common wire types, accommodating diameters from 0.81mm to 1.37mm.

High Precision and Reliability in Crimping: Its precision crimping module design ensures crimping force errors remain ≤5%, minimizing risks like terminal loosening or wire core breakage.

Compact Size for Easy Deployment: Featuring a desktop-style body, the i-pex terminals crimping machine fits effortlessly into production lines, laboratories, and maintenance workbenches.

Product Advantages

Efficiency Optimized for Small & Medium Batches: The i-pex terminals crimping machine achieves a single-terminal cycle time of ≤8 seconds, with a daily output exceeding 600 pieces—three times faster than manual crimping pliers.

More Stable Quality: With a crimping yield rate of ≥99.8%, the i-pex terminals crimping machine eliminates quality fluctuations caused by manual operations, such as insufficient force or poor contact.

Cost-Effective Solution: This machine consumes low energy, extends the crimping module’s lifespan by 40%, and costs only 20% of a fully automatic terminal crimping machine, making it an economical choice.

Low Threshold for Operation: Equipped with a button-type start and misoperation prevention design, the i-pex terminals crimping machine allows new operators to master independent operation after just 10 minutes of training.

Operating Instructions

Pre-Production Preparation: Connect the i-pex terminals crimping machine to power, then select and install the crimping die matching the wire diameter and terminal type.

Crimping Operation: Insert the stripped wire core into the terminal, place it in the crimping station, and press the start button. The i-pex terminals crimping machine will automatically reset after completing the crimping process.

Model Changeover Adjustment: When switching to different wire or terminal specifications, replace the corresponding die on the i-pex terminals crimping machine—no additional parameter debugging is required.

Daily Maintenance: After operation, turn off the power supply, clean residual impurities from the crimping station, and check the die’s tightness monthly to ensure optimal performance.
