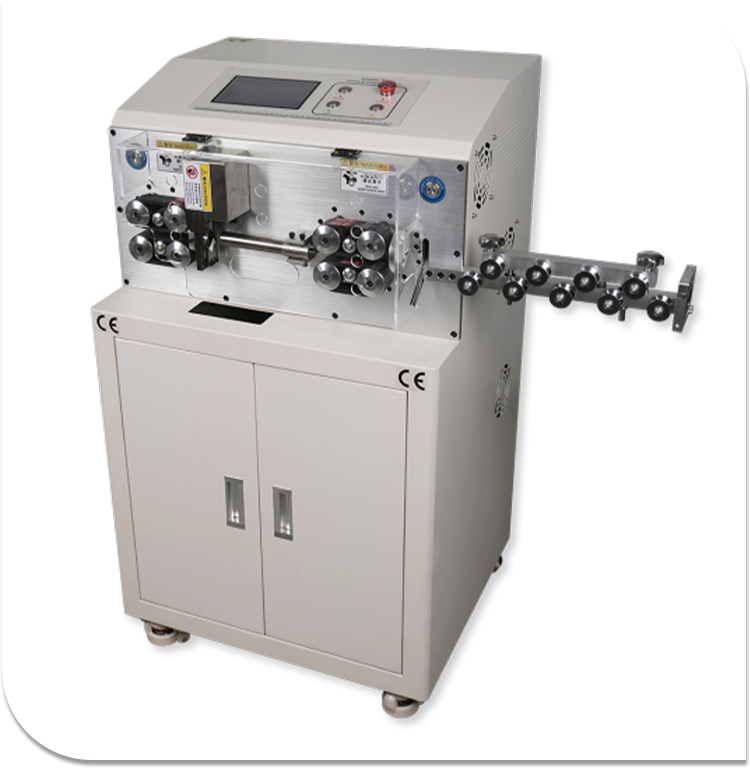

120² Cutting And Stripping Machine
120mm² Wire Harness Cutting And Stripping Machine
WHX-120-S
Send Inquiry
Product Description
The 120² cutting and stripping machine is a fully automatic wire processing system specifically engineered for large cross-section cables (≤120mm²). It integrates precise cutting and stripping functions, making it ideal for power engineering, industrial wire harness manufacturing, and other scenarios requiring efficient handling of thick wires like power cables and sheathed wires. By replacing manual labor, this 120² cutting and stripping machine ensures standardized batch operations with unmatched reliability.
Product Parameter
Stripping Range：Ф1 - Ф20mm
Cutting Resolition：±0.2mm
Cutting Length：0.1-100 m
Stripping Length：One end is 1-200mm, and the other end is 1-150mm
Production Rate：3000-3500 pcs / H
Power supply：220V/110V 50/60HZ
Power：3000W
Weight：130KG
Dimensions：L675*W600*H1180 mm
Cutting Resolition：±0.2mm
Cutting Length：0.1-100 m
Stripping Length：One end is 1-200mm, and the other end is 1-150mm
Production Rate：3000-3500 pcs / H
Power supply：220V/110V 50/60HZ
Power：3000W
Weight：130KG
Dimensions：L675*W600*H1180 mm
Product Feature
Core Selling Points
1.Large Cross-Section Compatibility: Designed to process cables up to 120mm², covering all common thick wire specifications in industrial and power applications.
2.Intelligent Numerical Control: Features dual operation modes (touchscreen + physical keys) for presetting cutting length and stripping depth with ±0.1mm accuracy.
3.Efficient Batch Operation: Processes 10–30 cables per minute, significantly boosting productivity for high-volume thick wire processing.
4.Safety Protection: Includes a transparent protective cover and emergency stop button to minimize accidental contact risks during operation.
Product Advantages
1.Specialized Processing Capacity: Unlike small cross-section machines, the 120² cutting and stripping machine excels in handling thick wires with superior compatibility.
2.Precision Control: Combines a numerical control system with roller positioning to eliminate large cutting/stripping errors common in thick wire processing.
3.Durability: Built with a robust metal body and high-hardness cutting tools to withstand the high-load demands of thick wire applications.
4.Operation Convenience: Features a wire arranging roller for automated feeding, eliminating the need for labor-intensive manual wire alignment.
Operation Instructions
1.Startup Preparation: Connect the power supply, turn on the main switch, and verify the protective cover is securely closed.
2.Parameter Setting: Input cable specifications, cutting length, and stripping depth via the touchscreen interface.
3.Loading: Thread the cable through the wire arranging roller and feed it into the machine’s inlet, ensuring proper alignment.
4.Start Operation: Press the start button; the 120² cutting and stripping machine will automatically execute wire feeding, cutting, and stripping.
5.Shutdown/Emergency Stop: Press the shutdown button after processing completes; use the emergency stop button immediately for any abnormalities.
1.Large Cross-Section Compatibility: Designed to process cables up to 120mm², covering all common thick wire specifications in industrial and power applications.
2.Intelligent Numerical Control: Features dual operation modes (touchscreen + physical keys) for presetting cutting length and stripping depth with ±0.1mm accuracy.
3.Efficient Batch Operation: Processes 10–30 cables per minute, significantly boosting productivity for high-volume thick wire processing.
4.Safety Protection: Includes a transparent protective cover and emergency stop button to minimize accidental contact risks during operation.
Product Advantages
1.Specialized Processing Capacity: Unlike small cross-section machines, the 120² cutting and stripping machine excels in handling thick wires with superior compatibility.
2.Precision Control: Combines a numerical control system with roller positioning to eliminate large cutting/stripping errors common in thick wire processing.
3.Durability: Built with a robust metal body and high-hardness cutting tools to withstand the high-load demands of thick wire applications.
4.Operation Convenience: Features a wire arranging roller for automated feeding, eliminating the need for labor-intensive manual wire alignment.
Operation Instructions
1.Startup Preparation: Connect the power supply, turn on the main switch, and verify the protective cover is securely closed.
2.Parameter Setting: Input cable specifications, cutting length, and stripping depth via the touchscreen interface.
3.Loading: Thread the cable through the wire arranging roller and feed it into the machine’s inlet, ensuring proper alignment.
4.Start Operation: Press the start button; the 120² cutting and stripping machine will automatically execute wire feeding, cutting, and stripping.
5.Shutdown/Emergency Stop: Press the shutdown button after processing completes; use the emergency stop button immediately for any abnormalities.
