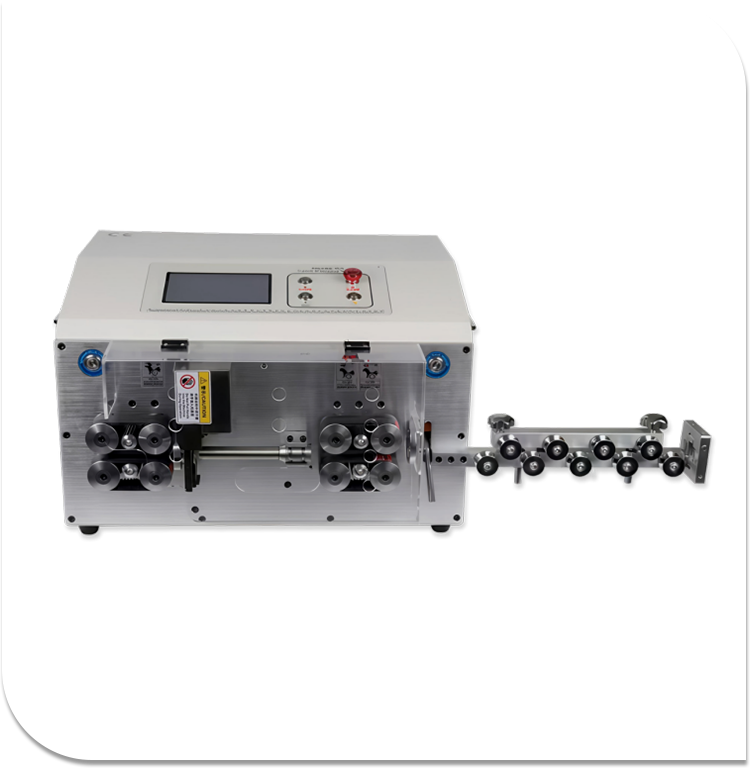

035² Cutting And Stripping Machine
0.35² Wire Harness Cutting And Stripping Machine
WHX-035-S
Send Inquiry
Product Description
The 035² cutting and stripping machine is a fully automatic wire processing solution designed for wires ranging from 1.0 to 35mm², making it ideal for new energy vehicle wiring harnesses, power cables, and communication cables. Powered by an 8-wheel servo drive and an intelligent PLC control system, this 035² cutting and stripping machine ensures precise cutting and stripping with minimal error margins. It supports batch storage of up to 200 processing parameters, streamlining workflows for industrial wiring harness production.
Product Parameter
Stripping Range：Ф1 - Ф13mm
Cutting Resolition：±0.2mm
Cutting Length：0.1-100 m
Stripping Length：One end is 1-150mm, and the other end is
1-100mm
Production Rate：2500-3000 pcs / H
Power supply：220V/110V 50/60HZ
Power：600W
Weight：108KG
Dimensions：L560*W460*H400 mm
Cutting Resolition：±0.2mm
Cutting Length：0.1-100 m
Stripping Length：One end is 1-150mm, and the other end is
1-100mm
Production Rate：2500-3000 pcs / H
Power supply：220V/110V 50/60HZ
Power：600W
Weight：108KG
Dimensions：L560*W460*H400 mm
Product Feature
Key Selling Points
1.Wide Specification Compatibility: Handles wires from 1.0 to 35mm², accommodating diverse industrial requirements.
2.High-Precision Processing: Maintains a cutting error ≤ ±0.3mm, while imported tungsten steel blades reduce burr height to < 0.1mm post-stripping.
3.Smart & User-Friendly Operation: Features 200-group program storage and a touchscreen interface, enabling quick setup even for beginners.
Product Advantages
1.Stable Wire Feeding: Utilizes an 8-wheel double-sided pressing system with tension closed-loop control to prevent wire damage or slippage during processing.
2.High-Efficiency Production: Processes up to 5,000 wires per hour and supports automatic material refilling to minimize manual intervention.
3.Easy Maintenance: Blades offer a 100,000-cycle lifespan and can be flipped for reuse; the modular design simplifies component replacement.
Operating Instructions
1.Startup Preparation: Verify air pressure and blade edge thickness; test the emergency stop function to ensure immediate shutdown capability.
2.Parameter Setting: Input cutting length, front/back stripping lengths, and wire diameter via the touchscreen; set production quantity and enable auto-refilling.
3.Test Run & Production: Perform a single cutting cycle and calibrate with an electronic ruler; during batch runs, inspect 3 pieces every 200 for quality control. Address error alarms by cleaning the guide rail promptly.
4.Shutdown Maintenance: Remove residual materials and use compressed air to clear debris from the blade slot after production.
1.Wide Specification Compatibility: Handles wires from 1.0 to 35mm², accommodating diverse industrial requirements.
2.High-Precision Processing: Maintains a cutting error ≤ ±0.3mm, while imported tungsten steel blades reduce burr height to < 0.1mm post-stripping.
3.Smart & User-Friendly Operation: Features 200-group program storage and a touchscreen interface, enabling quick setup even for beginners.
Product Advantages
1.Stable Wire Feeding: Utilizes an 8-wheel double-sided pressing system with tension closed-loop control to prevent wire damage or slippage during processing.
2.High-Efficiency Production: Processes up to 5,000 wires per hour and supports automatic material refilling to minimize manual intervention.
3.Easy Maintenance: Blades offer a 100,000-cycle lifespan and can be flipped for reuse; the modular design simplifies component replacement.
Operating Instructions
1.Startup Preparation: Verify air pressure and blade edge thickness; test the emergency stop function to ensure immediate shutdown capability.
2.Parameter Setting: Input cutting length, front/back stripping lengths, and wire diameter via the touchscreen; set production quantity and enable auto-refilling.
3.Test Run & Production: Perform a single cutting cycle and calibrate with an electronic ruler; during batch runs, inspect 3 pieces every 200 for quality control. Address error alarms by cleaning the guide rail promptly.
4.Shutdown Maintenance: Remove residual materials and use compressed air to clear debris from the blade slot after production.
