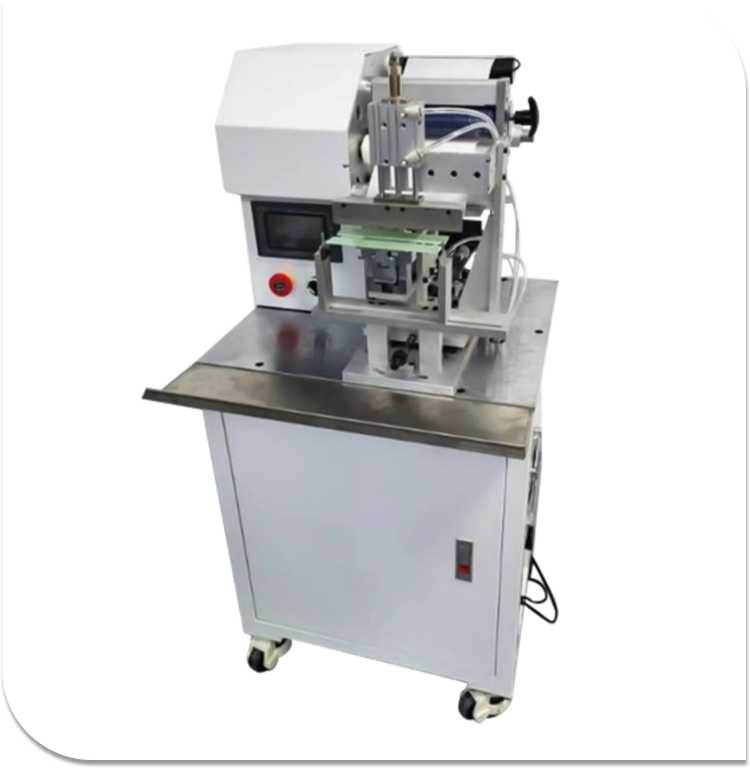

Automate Flip Fold Machine
Automatic Wire Folding And Label Synchronous Attachment Machine
WHX-YS25
Send Inquiry
Product Description
The automate flip fold machine is a specialized wire folding and labeling solution designed for multi-specification wire processing in electronics, home appliances, and wire harness manufacturing. By integrating automated folding and precise labeling, this automate flip fold machine ensures operational efficiency and consistent identification, making it a professional tool for achieving neatly labeled wire harnesses.
Product Parameter
Product size range：Ф0.1mm - Ф2.5mm
Auxiliary material size：L 70-15mm W 15-40mm H 1-3mm
Flip Fold Resolition：±1mm
Production Rate：700-1300 PCS / h
Input Power supply：AC 220V（DC 110V) 50/60HZ 20A
weight：95KG
Dimensions：L850*W520*H1100 mm
Auxiliary material size：L 70-15mm W 15-40mm H 1-3mm
Flip Fold Resolition：±1mm
Production Rate：700-1300 PCS / h
Input Power supply：AC 220V（DC 110V) 50/60HZ 20A
weight：95KG
Dimensions：L850*W520*H1100 mm
Product Feature
Core Selling Points
1.Precise Labeling: The automate flip fold machine’s automated positioning system ensures labels are attached flat and accurately, eliminating misalignment or warping issues common with manual labeling and enhancing identification neatness.
2.Multi-Specification Compatibility: Supporting wires of varying diameters and lengths, the automate flip fold machine features adjustable fixtures for quick, convenient specification switching.
3.Intelligent Operation: A touch interface allows presetting folding lengths and labeling parameters, enabling one-click startup and effortless operation for beginners.
Product Advantages
1.Efficiency Improvement: The automate flip fold machine automates wire folding and labeling, replacing repetitive manual tasks. A single unit processes thousands of pieces daily, significantly reducing labor costs.
2.Controllable Loss: Standardized folding force and labeling pressure minimize wire bending damage and label waste, improving material utilization.
3.Flexible Adaptability: Equipped with casters and fixed supports, the automate flip fold machine is easy to move and position, supporting small-batch, multi-variety production to meet diverse wire harness processing demands.
Operating Instructions
1.Fixture Adjustment: Set fixture spacing and folding stroke based on wire diameter and length, securing the corresponding wire positioning components on the automate flip fold machine.
2.Parameter Setting: Input folding length and labeling position via the touch screen, import label templates, and calibrate the labeling head.
3.Processing Operation: Insert the wire into the feed inlet and press start. The automate flip fold machine automates folding, label feeding, and attachment, then outputs the finished product.
4.Daily Maintenance: Clean residual label adhesive after each use, inspect fixture wear weekly, and lubricate the transmission guide rail monthly to extend the machine’s lifespan.
1.Precise Labeling: The automate flip fold machine’s automated positioning system ensures labels are attached flat and accurately, eliminating misalignment or warping issues common with manual labeling and enhancing identification neatness.
2.Multi-Specification Compatibility: Supporting wires of varying diameters and lengths, the automate flip fold machine features adjustable fixtures for quick, convenient specification switching.
3.Intelligent Operation: A touch interface allows presetting folding lengths and labeling parameters, enabling one-click startup and effortless operation for beginners.
Product Advantages
1.Efficiency Improvement: The automate flip fold machine automates wire folding and labeling, replacing repetitive manual tasks. A single unit processes thousands of pieces daily, significantly reducing labor costs.
2.Controllable Loss: Standardized folding force and labeling pressure minimize wire bending damage and label waste, improving material utilization.
3.Flexible Adaptability: Equipped with casters and fixed supports, the automate flip fold machine is easy to move and position, supporting small-batch, multi-variety production to meet diverse wire harness processing demands.
Operating Instructions
1.Fixture Adjustment: Set fixture spacing and folding stroke based on wire diameter and length, securing the corresponding wire positioning components on the automate flip fold machine.
2.Parameter Setting: Input folding length and labeling position via the touch screen, import label templates, and calibrate the labeling head.
3.Processing Operation: Insert the wire into the feed inlet and press start. The automate flip fold machine automates folding, label feeding, and attachment, then outputs the finished product.
4.Daily Maintenance: Clean residual label adhesive after each use, inspect fixture wear weekly, and lubricate the transmission guide rail monthly to extend the machine’s lifespan.
