Auotmate Crimp Terminals Into insulation Jackets And Dipping Tin Machine
Full-automatic Double-head Wire Terminal Crimping and Double Sheath Threading Machine
WHX-018HC
Send Inquiry
Product Description

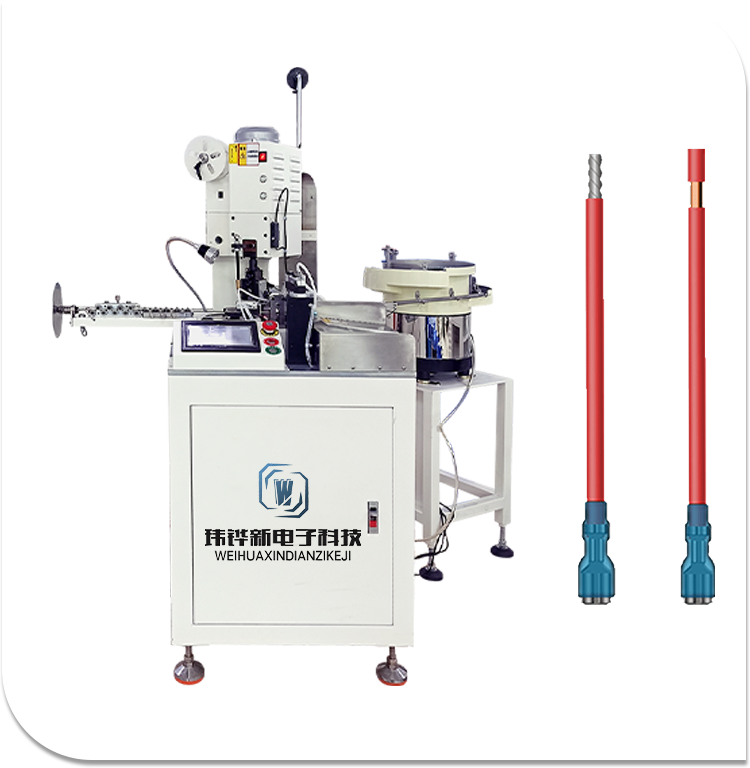

This automate crimp terminals into insulation jackets and dipping tin machine is an advanced automated device primarily designed for the integrated operation of single-end terminal crimping and automatic sheath threading, with additional capabilities for dipping tin processes in the wire processing workflow. It seamlessly integrates functions including wire feeding, wire cutting, terminal crimping, sheath feeding (vibratory bowl feeding), sheath threading, and optional dipping tin applications. Compatible with wires and sheaths of various specifications, this automate crimp terminals into insulation jackets and dipping tin machine can significantly replace manual operations, enhancing both the efficiency and consistency of wire harness processing.
Product Parameter
Production Rate：2400PCS/H
Application field：It is used for cutting wires, stripping insulation, crimping terminals, threading insulation sleeves, and stripping the
insulation as well as tinning at the other end
Cables Specification：AWG24#-AWG14#
Cable size range：Ф1.6mm - Ф3.6mm
Cutting Length：80-3000mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：The length is within 500 millimeters
0.5mm+ Cutting Length * 0.2%And The length is within
1000 millimeters.1.0mm+ Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L965*W835*H1860 mm
Application field：It is used for cutting wires, stripping insulation, crimping terminals, threading insulation sleeves, and stripping the
insulation as well as tinning at the other end
Cables Specification：AWG24#-AWG14#
Cable size range：Ф1.6mm - Ф3.6mm
Cutting Length：80-3000mm
Power supply：AC220V 50/60Hz 20A
Cutting Resolition：The length is within 500 millimeters
0.5mm+ Cutting Length * 0.2%And The length is within
1000 millimeters.1.0mm+ Cutting Length * 0.2%
Crimping ability：2T
Dimensions：L965*W835*H1860 mm
Product Feature
Core Selling Points
1.Full-process Automation: From wire feeding and cutting to terminal crimping, automatic sheath threading, and even dipping tin processes, the entire single-end processing can be completed with one-click start on the automate crimp terminals into insulation jackets and dipping tin machine, without manual intervention, streamlining production workflows.
2.High-precision Adaptability: Equipped with a vibratory bowl for precise sheath feeding, terminal crimping parameters can be set via the touch screen. The automate crimp terminals into insulation jackets and dipping tin machine is adaptable to different wire diameters and sheath specifications (compatible with conventional PVC/nylon sheaths), ensuring versatility in production.
3.Intelligent Control: Visual operation is realized through the touch screen interface, with support for parameter storage and fault alarm functions. This enables even novices to master the operation of the automate crimp terminals into insulation jackets and dipping tin machine quickly, enhancing productivity and ease of use.
Product Advantages
1.Efficiency Improvement: The automate crimp terminals into insulation jackets and dipping tin machine replaces manual single-process operation, with a processing speed of up to 3,000–5,000 pieces per hour (with slight variations depending on wire length and specifications), significantly boosting production throughput.
2.Stable Quality: Mechanical crimping combined with automatic sheath threading and optional dipping tin processes avoids defects such as poor terminal crimping and sheath misalignment caused by manual operations, ensuring consistent and reliable product quality.
3.Cost Reduction: The automate crimp terminals into insulation jackets and dipping tin machine cuts down labor input and reduces material waste of wires, terminals, and sheaths simultaneously, contributing to overall cost savings and improved profitability.
Operating Instructions
1.Parameter Setting: Select wire length, terminal specifications, and sheath models via the touch screen, input the corresponding parameters, and save them on the automate crimp terminals into insulation jackets and dipping tin machine.
2.Feeding Preparation: Mount the wire coil on the wire feeding shaft, load the terminals onto the terminal rack, and pour the sheaths into the vibratory bowl hopper. Ensure all components are properly aligned and ready for processing.
3.Start Operation: After confirming that all components are in place, press the start button. The automate crimp terminals into insulation jackets and dipping tin machine will automatically complete the entire process of wire feeding, cutting, terminal crimping, sheath threading, and optional dipping tin applications.
4.Finished Product Collection: Processed wires are automatically output and can be collected directly. If a fault occurs, the automate crimp terminals into insulation jackets and dipping tin machine will trigger an alarm and stop running; it can be restarted after troubleshooting, ensuring smooth and uninterrupted production.
1.Full-process Automation: From wire feeding and cutting to terminal crimping, automatic sheath threading, and even dipping tin processes, the entire single-end processing can be completed with one-click start on the automate crimp terminals into insulation jackets and dipping tin machine, without manual intervention, streamlining production workflows.
2.High-precision Adaptability: Equipped with a vibratory bowl for precise sheath feeding, terminal crimping parameters can be set via the touch screen. The automate crimp terminals into insulation jackets and dipping tin machine is adaptable to different wire diameters and sheath specifications (compatible with conventional PVC/nylon sheaths), ensuring versatility in production.
3.Intelligent Control: Visual operation is realized through the touch screen interface, with support for parameter storage and fault alarm functions. This enables even novices to master the operation of the automate crimp terminals into insulation jackets and dipping tin machine quickly, enhancing productivity and ease of use.
Product Advantages
1.Efficiency Improvement: The automate crimp terminals into insulation jackets and dipping tin machine replaces manual single-process operation, with a processing speed of up to 3,000–5,000 pieces per hour (with slight variations depending on wire length and specifications), significantly boosting production throughput.
2.Stable Quality: Mechanical crimping combined with automatic sheath threading and optional dipping tin processes avoids defects such as poor terminal crimping and sheath misalignment caused by manual operations, ensuring consistent and reliable product quality.
3.Cost Reduction: The automate crimp terminals into insulation jackets and dipping tin machine cuts down labor input and reduces material waste of wires, terminals, and sheaths simultaneously, contributing to overall cost savings and improved profitability.
Operating Instructions
1.Parameter Setting: Select wire length, terminal specifications, and sheath models via the touch screen, input the corresponding parameters, and save them on the automate crimp terminals into insulation jackets and dipping tin machine.
2.Feeding Preparation: Mount the wire coil on the wire feeding shaft, load the terminals onto the terminal rack, and pour the sheaths into the vibratory bowl hopper. Ensure all components are properly aligned and ready for processing.
3.Start Operation: After confirming that all components are in place, press the start button. The automate crimp terminals into insulation jackets and dipping tin machine will automatically complete the entire process of wire feeding, cutting, terminal crimping, sheath threading, and optional dipping tin applications.
4.Finished Product Collection: Processed wires are automatically output and can be collected directly. If a fault occurs, the automate crimp terminals into insulation jackets and dipping tin machine will trigger an alarm and stop running; it can be restarted after troubleshooting, ensuring smooth and uninterrupted production.
