30TS CNC Servo Crimping Machine
Servo 30TS Energy Storage Terminal Crimping Machine

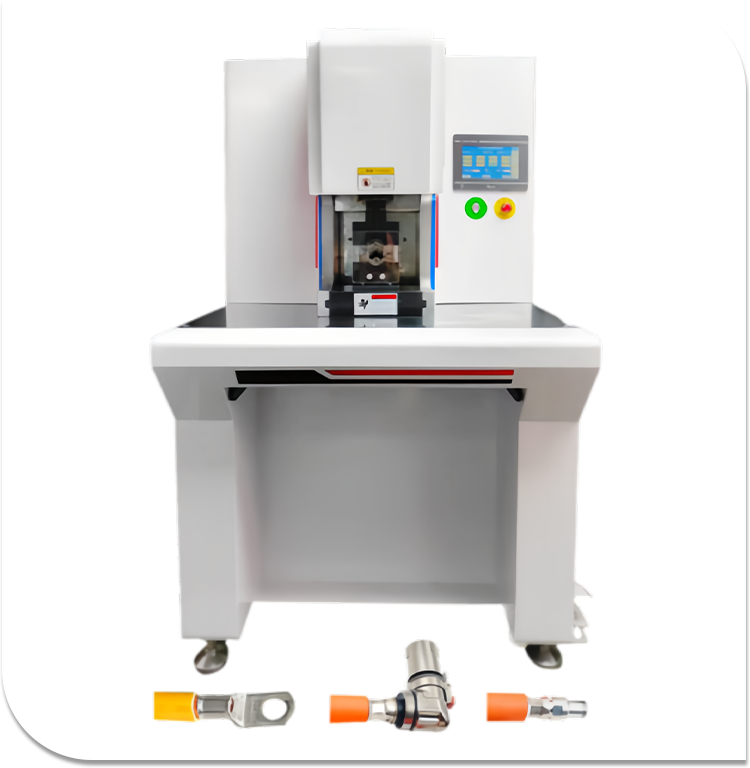

30TS CNC Servo Crimping Machine
Send Inquiry
Product Description
The 30TS CNC servo crimping machine is a semi-automatic crimping device tailored for new energy, electric power, and wire harness processing industries, specifically engineered for large wire diameter cables ranging from 6-120mm² and diverse terminal types. By integrating manual wire feeding with servo-driven crimping technology, this 30TS CNC servo crimping machine not only preserves the operational flexibility essential for small-batch production but also attains industrial-grade crimping precision, making it an efficient solution for processing multi-variety, medium-batch cable terminals.
Product Parameter
Application field：Crimping ；Pressure detection ；Scan the code to identify
Weight：385KG
Movement distance：0-50mm
Input Power supply：AC220V 50/60Hz 20A
Input Power：2.3KW
Crimping Force：30TS
Crimping Resolition：±0.03mm
Pressure monitoring：Pressure monitoring at the
bottom / Side pressure monitoring
Dimensions：L850*W650*H1500(mm)
Weight：385KG
Movement distance：0-50mm
Input Power supply：AC220V 50/60Hz 20A
Input Power：2.3KW
Crimping Force：30TS
Crimping Resolition：±0.03mm
Pressure monitoring：Pressure monitoring at the
bottom / Side pressure monitoring
Dimensions：L850*W650*H1500(mm)
Product Feature
Core Selling Points
1.Ultra-precise Crimping: Leveraging a servo drive system, the crimping precision of the 30TS CNC servo crimping machine reaches an impressive ±0.03mm, ensuring uniform and stable crimping force. This precision effectively prevents terminal deformation and cable damage caused by poor contact or over-crimping, resulting in a processing yield rate exceeding 99%.
2.Wide Specification Compatibility: The 30TS CNC servo crimping machine supports a broad range of wire diameters (6-120mm²) and various terminal types, including tubular and fork-type terminals. Equipped with a diverse array of special molds, mold switching can be accomplished in just 5 minutes, enabling the machine to meet the processing demands of non-standard terminals efficiently.
3.Intelligent & Easy Operation: Featuring a 7-inch touch screen and PLC control system, the 30TS CNC servo crimping machine allows users to retrieve up to 10 sets of crimping parameters with a single click. Novices can master operation within 10 minutes, and the interface supports seamless switching between Chinese and English languages.
Product Advantages
1.Strong Cost Adaptability: The semi-automatic design of the 30TS CNC servo crimping machine significantly reduces procurement costs by eliminating the need for supporting automated production lines. This makes it feasible for small workshops and small-batch orders to achieve efficient processing, with a single machine capable of producing 800-1500 pieces per day.
2.Lower Material Loss: By combining uniform servo crimping force with a pressure detection function, the 30TS CNC servo crimping machine minimizes waste such as terminal deformation and cable insulation damage, thereby increasing material utilization rate by approximately 15%.
3.Flexible Space & Rhythm: With its compact dimensions of only 850×650×1500mm and equipped with casters for easy mobility, the 30TS CNC servo crimping machine offers flexible space utilization. The manual wire feeding mode allows for real-time adjustment of processing rhythm, perfectly adapting to the order switching needs of multi-variety and small-batch production environments.
Operation Instructions
1.Mold Installation: Select the appropriate special mold based on the cable diameter and terminal type, securely fix it to the crimping station, and lock it tightly.
2.Parameter Setting: Utilize the touch screen to select a preset parameter group or manually adjust parameters such as crimping height and dwell time to align with the current terminal specifications.
3.Processing Operation: Manually feed the cable into the feed inlet and activate the machine by stepping on the foot switch. The device will automatically complete the terminal feeding and crimping processes, after which the finished product can be retrieved.
4.Daily Maintenance: After each processing session, clean mold debris to maintain optimal performance. Inspect the wear condition of crimping components weekly and lubricate transmission parts monthly. The machine comes with a comprehensive 1-year warranty and free online technical support to ensure hassle-free operation.
1.Ultra-precise Crimping: Leveraging a servo drive system, the crimping precision of the 30TS CNC servo crimping machine reaches an impressive ±0.03mm, ensuring uniform and stable crimping force. This precision effectively prevents terminal deformation and cable damage caused by poor contact or over-crimping, resulting in a processing yield rate exceeding 99%.
2.Wide Specification Compatibility: The 30TS CNC servo crimping machine supports a broad range of wire diameters (6-120mm²) and various terminal types, including tubular and fork-type terminals. Equipped with a diverse array of special molds, mold switching can be accomplished in just 5 minutes, enabling the machine to meet the processing demands of non-standard terminals efficiently.
3.Intelligent & Easy Operation: Featuring a 7-inch touch screen and PLC control system, the 30TS CNC servo crimping machine allows users to retrieve up to 10 sets of crimping parameters with a single click. Novices can master operation within 10 minutes, and the interface supports seamless switching between Chinese and English languages.
Product Advantages
1.Strong Cost Adaptability: The semi-automatic design of the 30TS CNC servo crimping machine significantly reduces procurement costs by eliminating the need for supporting automated production lines. This makes it feasible for small workshops and small-batch orders to achieve efficient processing, with a single machine capable of producing 800-1500 pieces per day.
2.Lower Material Loss: By combining uniform servo crimping force with a pressure detection function, the 30TS CNC servo crimping machine minimizes waste such as terminal deformation and cable insulation damage, thereby increasing material utilization rate by approximately 15%.
3.Flexible Space & Rhythm: With its compact dimensions of only 850×650×1500mm and equipped with casters for easy mobility, the 30TS CNC servo crimping machine offers flexible space utilization. The manual wire feeding mode allows for real-time adjustment of processing rhythm, perfectly adapting to the order switching needs of multi-variety and small-batch production environments.
Operation Instructions
1.Mold Installation: Select the appropriate special mold based on the cable diameter and terminal type, securely fix it to the crimping station, and lock it tightly.
2.Parameter Setting: Utilize the touch screen to select a preset parameter group or manually adjust parameters such as crimping height and dwell time to align with the current terminal specifications.
3.Processing Operation: Manually feed the cable into the feed inlet and activate the machine by stepping on the foot switch. The device will automatically complete the terminal feeding and crimping processes, after which the finished product can be retrieved.
4.Daily Maintenance: After each processing session, clean mold debris to maintain optimal performance. Inspect the wear condition of crimping components weekly and lubricate transmission parts monthly. The machine comes with a comprehensive 1-year warranty and free online technical support to ensure hassle-free operation.
